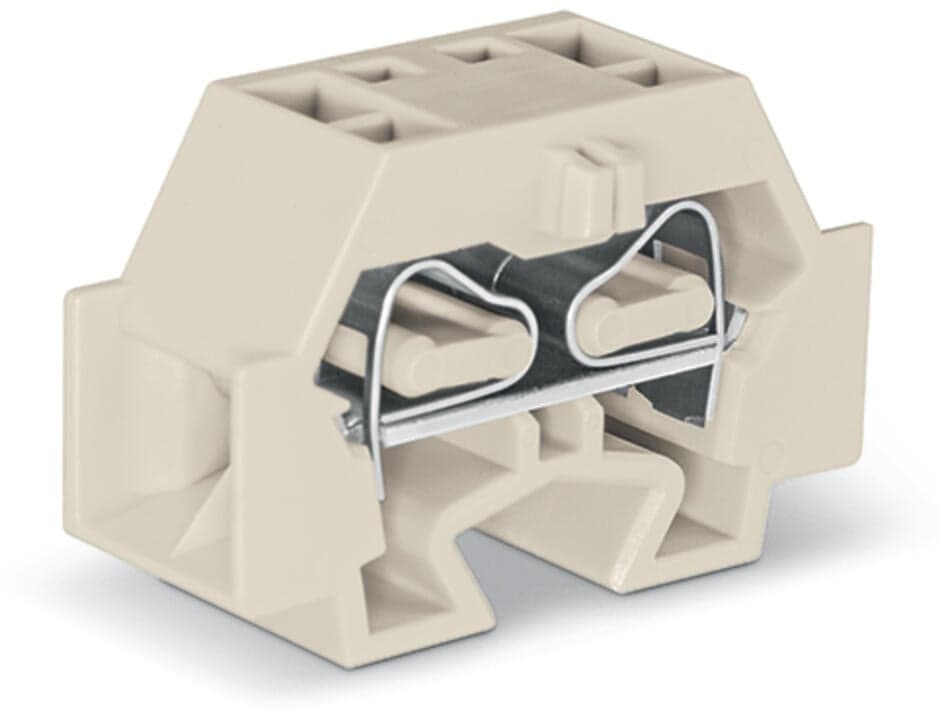

Product Model
262-281
Selling Points
- 1Compact size with a width of 12 mm, perfect for tight spaces.
- 2Suitable for hazardous environments with a rated voltage of 550 V and current of 30 A.
- 3Secure and reliable connections for conductors up to 4 mm² or #20 AWG.
- 4Easy installation on DIN rails or surfaces without protruding mounting foot.
- 5Durable and easy-to-spot light gray finish for enhanced visibility.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 4 | Total number of potentials | 1 |
Number of levels | 1 | Width | 12?mm?/ 0.472?inches |
Height from the surface | 23.1?mm?/ 0.909?inches | Depth | 33.5?mm?/ 1.319?inches |
Design | horizontal type | Mounting type | Snap-in foot |
Marking level | Side marking | Note (material data) | Information on material specifications can be found here |
Color | light gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.111MJ | Halogen-free | Yes |
Weight | 6.9g | Processing temperature | -35 … +85?°C |
Continuous operating temperature | -60 … +105?°C | Product Group | 9 (Std Chassis Mt Blocks) |
eCl@ss 10.0 | 27-14-11-06 | eCl@ss 9.0 | 27-14-11-06 |
ETIM 9.0 | EC001284 | ETIM 8.0 | EC001284 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 100?(50)?pcs |
Packaging type | box | Country of origin | CH |
GTIN | 4044918639156 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption | Reference hazardous areas | See “Downloads – Documentation – Additional Information: Technical Section; Technical Explications” |
Rated voltage EN (Ex e II) | 550V | Rated current (Ex e II) | 30A |
Connection technology | CAGE CLAMP? | Actuation type | Operating tool |
Connectable conductor materials | Copper | Solid conductor | 0.5 … 4?mm2?/ 20 … 12?AWG |
Fine-stranded conductor | 0.5 … 4?mm2?/ 20 … 12?AWG | Strip length | 9 … 10?mm?/ 0.35 … 0.39?inches |
Wiring direction | Side-entry wiring |
Specifications may be subject to change without notice
