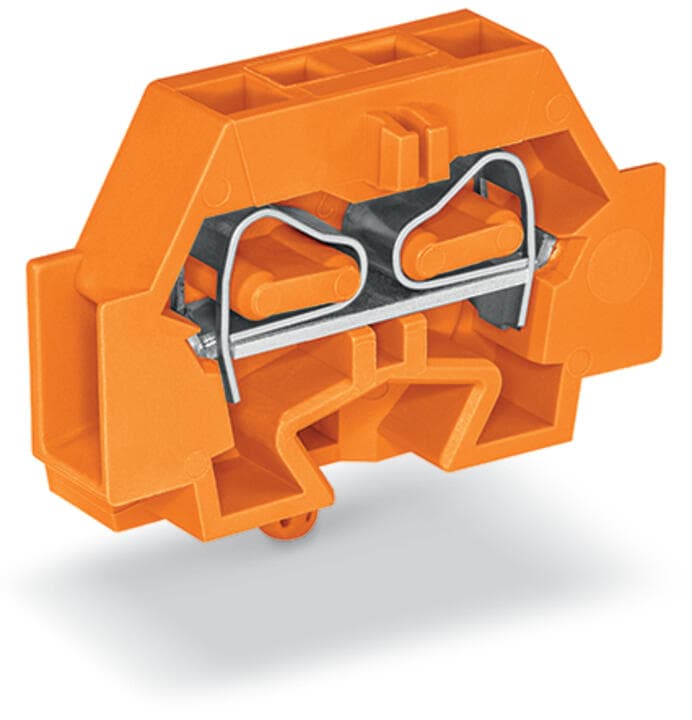

Product Model
262-316
Selling Points
- 1Snap-in Mounting Foot: Easy installation on various plate thicknesses (0.6 - 1.2 mm).
- 2CAGE CLAMP Connections: Secure and reliable connections for copper and aluminum conductors (0.08 - 4 mm²).
- 3High Electrical Ratings: Rated voltage (III / 3) up to 630 V and impulse voltage up to 8 kV.
- 4Compact Design: Compact dimensions (7 mm width, 23 mm height, 33.5 mm depth).
- 5Compliance and Certifications: Meets ROHS standards and certified by DEKRA and ABS for safety and quality assurance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 2 | Total number of potentials | 1 |
Number of levels | 1 | Width | 7?mm?/ 0.276?inches |
Height from the surface | 23.1?mm?/ 0.909?inches | Depth | 33.5?mm?/ 1.319?inches |
Design | horizontal type | Mounting type | Snap-in foot |
Marking level | Side marking | Note (material data) | Information on material specifications can be found here |
Fire load | 0.078MJ | Halogen-free | Yes |
Weight | 4.2g | Product Group | 9 (Std Chassis Mt Blocks) |
eCl@ss 10.0 | 27-14-11-06 | eCl@ss 9.0 | 27-14-11-06 |
ETIM 9.0 | EC001284 | ETIM 8.0 | EC001284 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 100?(50)?pcs |
Packaging type | box | Country of origin | CN |
GTIN | 4044918639781 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption | Rated voltage (III / 3) | 690V |
Rated impulse voltage (III / 3) | 8kV | Rated current | 32A |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Approvals per | CSA 22.2 No 158 |
Rated voltage UL (Use Group B) | 300V | Rated current UL (Use Group B) | 20A |
Rated voltage UL (Use Group C) | 300V | Rated current UL (Use Group C) | 20A |
Rated voltage UL (Use Group D) | 300V | Rated current UL (Use Group D) | 10A |
Rated voltage CSA (Use Group B) | 600V | Rated current CSA (Use Group B) | 5A |
Rated voltage CSA (Use Group C) | 300V | Rated current CSA (Use Group C) | 25A |
Rated voltage CSA (Use Group D) | 600V | Rated current CSA (Use Group D) | 5A |
Connection technology | CAGE CLAMP? | Actuation type | Operating tool |
Connectable conductor materials | Copper | Solid conductor | 0.08 … 4?mm2?/ 28 … 12?AWG |
Fine-stranded conductor | 0.08 … 4?mm2?/ 28 … 12?AWG | Strip length | 9 … 10?mm?/ 0.35 … 0.39?inches |
Wiring direction | Side-entry wiring |
Specifications may be subject to change without notice
