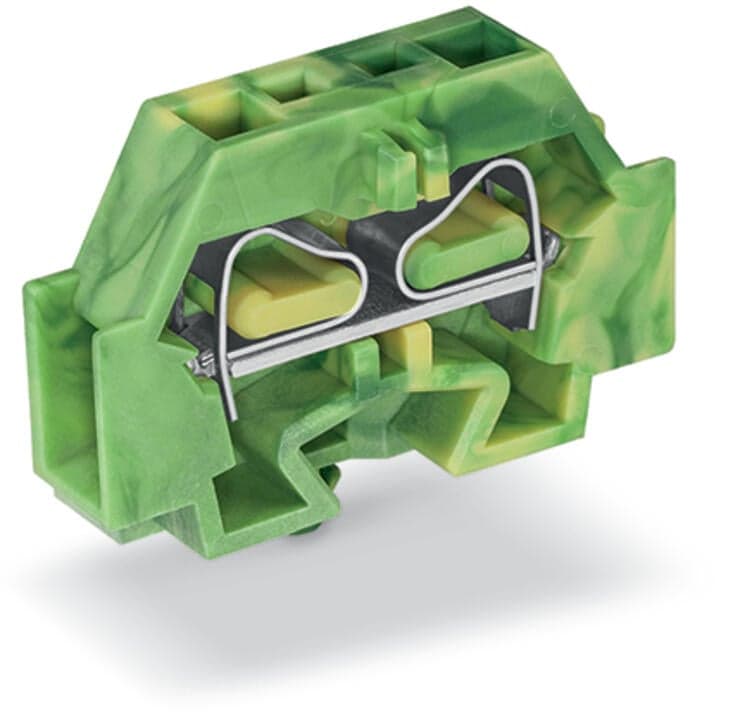

Product Model
262-317
Selling Points
- 1Effortless Connection: The WAGO 262-317 features CAGE CLAMP technology for quick and secure conductor connections.
- 2Snap-in Mounting: Easy installation with snap-in mounting foot, ideal for various plate thicknesses (0.6 - 1.2 mm).
- 3High-Performance: Designed for high-performance applications, ensuring reliable and vibration-proof connections.
- 4Versatile Compatibility: Compatible with aluminum rail systems (210-154) and various mounting adapters.
- 5Rohs Compliant: Meets ROHS compliance standards, ensuring environmental safety in industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 2 | Total number of potentials | 1 |
Number of levels | 1 | Width | 7?mm?/ 0.276?inches |
Height from the surface | 23.1?mm?/ 0.909?inches | Depth | 33.5?mm?/ 1.319?inches |
Design | horizontal type | Mounting type | Snap-in foot |
Marking level | Side marking | Note (material data) | Information on material specifications can be found here |
Color | green-yellow | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.079MJ | Halogen-free | Yes |
Weight | 4.3g | Processing temperature | -35 … +85?°C |
Continuous operating temperature | -60 … +105?°C | Product Group | 9 (Std Chassis Mt Blocks) |
eCl@ss 10.0 | 27-14-11-06 | eCl@ss 9.0 | 27-14-11-06 |
ETIM 9.0 | EC001284 | ETIM 8.0 | EC001284 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 100?(50)?pcs |
Packaging type | box | Country of origin | CN |
GTIN | 4044918639804 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption | Rated voltage (III / 3) | 690V |
Rated impulse voltage (III / 3) | 8kV | Rated current | 32A |
Rated voltage UL (Use Group B) | 300V | Rated current UL (Use Group B) | 20A |
Rated voltage UL (Use Group C) | 300V | Rated current UL (Use Group C) | 20A |
Rated voltage UL (Use Group D) | 300V | Rated current UL (Use Group D) | 10A |
Approvals per | CSA 22.2 No 158 | Rated voltage CSA (Use Group B) | 600V |
Rated current CSA (Use Group B) | 5A | Rated voltage CSA (Use Group C) | 300V |
Rated current CSA (Use Group C) | 25A | Rated voltage CSA (Use Group D) | 600V |
Rated current CSA (Use Group D) | 5A | Connection technology | CAGE CLAMP? |
Actuation type | Operating tool | Connectable conductor materials | Copper |
Solid conductor | 0.08 … 4?mm2?/ 28 … 12?AWG | Fine-stranded conductor | 0.08 … 4?mm2?/ 28 … 12?AWG |
Strip length | 9 … 10?mm?/ 0.35 … 0.39?inches | Wiring direction | Side-entry wiring |
Specifications may be subject to change without notice
