Product Model
262-327
Selling Points

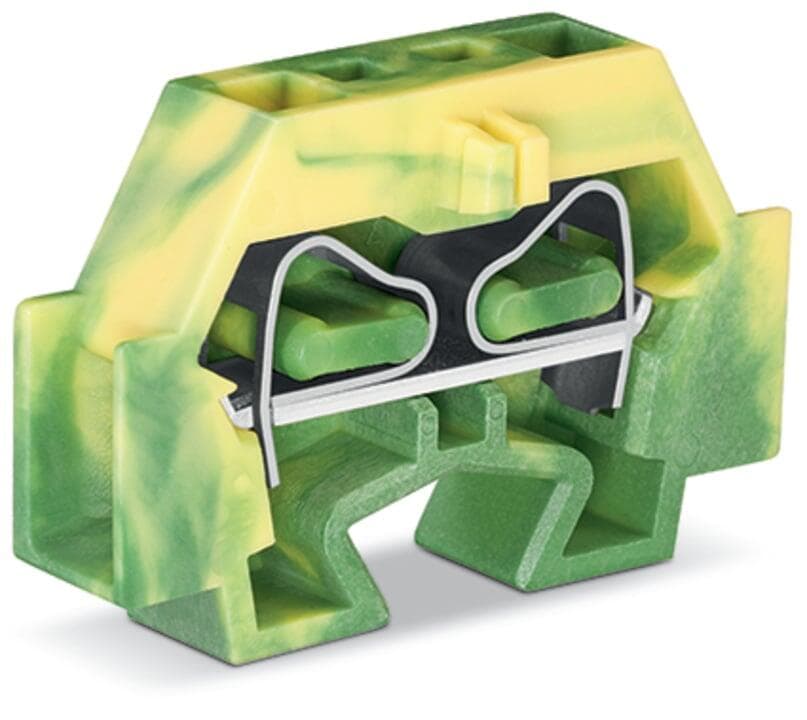

- 1The WAGO 262-327 terminal block is designed for space-saving applications, making it ideal for installations where space is limited.
- 2Equipped with CAGE CLAMP connections, this terminal block ensures secure and reliable connections for conductors from 0.08 to 4 mm².
- 3The side-entry wiring design allows for easy access and connection of wires, enhancing the efficiency of your electrical setup.
- 4The snap-in mounting foot allows for quick and secure installation on DIN rails or surfaces, making it versatile for various mounting needs.
- 5Constructed from high-quality materials like polyamide (PA66), this terminal block ensures durability and resistance to environmental factors.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 2 | Total number of potentials | 1 |
Number of levels | 1 | Width | 7?mm?/ 0.276?inches |
Height from the surface | 23.1?mm?/ 0.909?inches | Depth | 33.5?mm?/ 1.319?inches |
Design | horizontal type | Mounting type | Snap-in foot |
Marking level | Side marking | Note (material data) | Information on material specifications can be found here |
Color | green-yellow | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.078MJ | Halogen-free | Yes |
Weight | 4.2g | Processing temperature | -35 … +85?°C |
Continuous operating temperature | -60 … +105?°C | Product Group | 9 (Std Chassis Mt Blocks) |
eCl@ss 10.0 | 27-14-11-06 | eCl@ss 9.0 | 27-14-11-06 |
ETIM 9.0 | EC001284 | ETIM 8.0 | EC001284 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 100?(50)?pcs |
Packaging type | box | Country of origin | CN |
GTIN | 4044918642514 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption | Rated voltage (III / 3) | 690V |
Rated impulse voltage (III / 3) | 8kV | Rated current | 32A |
Rated voltage UL (Use Group B) | 300V | Rated current UL (Use Group B) | 20A |
Rated voltage UL (Use Group C) | 300V | Rated current UL (Use Group C) | 20A |
Rated voltage UL (Use Group D) | 300V | Rated current UL (Use Group D) | 10A |
Approvals per | CSA 22.2 No 158 | Rated voltage CSA (Use Group B) | 600V |
Rated current CSA (Use Group B) | 5A | Rated voltage CSA (Use Group C) | 300V |
Rated current CSA (Use Group C) | 25A | Rated voltage CSA (Use Group D) | 600V |
Rated current CSA (Use Group D) | 5A | Connection technology | CAGE CLAMP? |
Actuation type | Operating tool | Connectable conductor materials | Copper |
Solid conductor | 0.08 … 4?mm2?/ 28 … 12?AWG | Fine-stranded conductor | 0.08 … 4?mm2?/ 28 … 12?AWG |
Strip length | 9 … 10?mm?/ 0.35 … 0.39?inches | Wiring direction | Side-entry wiring |
Specifications may be subject to change without notice
