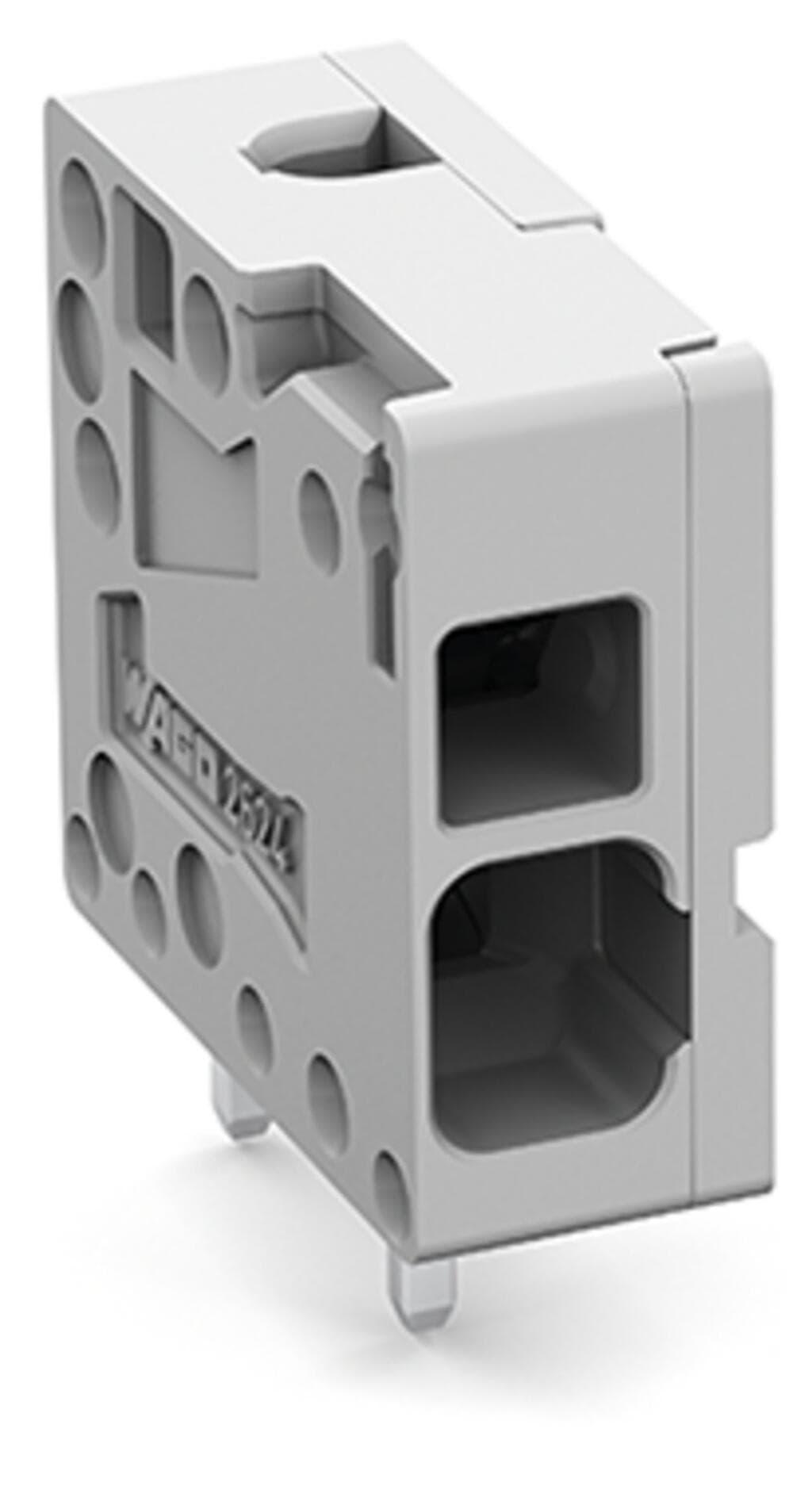

Product Model
2624-1101
Selling Points
- 1Push-in CAGE CLAMP technology ensures reliable and easy conductor connection.
- 2Ideal for panel feedthrough applications, suitable for solid and ferruled conductors.
- 3Rated for 300V and 26A in CSA Use Group B, making it suitable for various electrical projects.
- 4Simple push-in termination simplifies installation and reduces errors.
- 5Constructed with high-quality materials, including polyamide insulation for long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | The inherent stability of a single-pole PCB terminal block is less than that of a multi-pole terminal strip. The customer must therefore ensure that these terminal blocks are protected against excessive mechanical stress (e.g., torsional or bending stress), both when connecting the conductor and during subsequent use, for example by providing additional support, shortly holding the connected conductor and appropriate actuation instructions. | Variants: | Other pole numbers |
Clamping units | 1 | Total number of potentials | 1 |
Number of connection types | 1 | Number of levels | 1 |
Pin spacing | 5?mm?/ 0.197?inches | Width | 6.5?mm?/ 0.256?inches |
Height | 19.4?mm?/ 0.764?inches | Height from the surface | 15.4?mm?/ 0.606?inches |
Depth | 16.3?mm?/ 0.642?inches | Solder pin length | 4mm |
Solder pin dimensions | 0.8 x 1?mm | Drilled hole diameter with tolerance | 1.3(+0.1)mm |
Mounting type | Feed-through mounting | PCB contact | THT |
Solder pin arrangement | Over the entire terminal strip (in-line) | Number of solder pins per potential | 2 |
Note (material data) | Information on material specifications can be found here | Color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Clamping spring material | Chrome-nickel spring steel (CrNi) |
Contact material | Electrolytic copper (ECu) | Contact plating | Tin |
Weight | 1.9g | Limit temperature range | -60 … +105?°C |
Processing temperature | -35 … +60?°C | Continuous operating temperature | -60 … +105?°C |
eCl@ss 10.0 | 27-44-04-01 | eCl@ss 9.0 | 27-44-04-01 |
ETIM 9.0 | EC002643 | ETIM 8.0 | EC002643 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 300?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4055143578295 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
Rated voltage (III / 3) | 320V | Rated impulse voltage (III / 3) | 4kV |
Rated voltage (III/2) | 400V | Rated surge voltage (III/2) | 4kV |
Nominal voltage (II/2) | 630V | Rated surge voltage (II/2) | 4kV |
Rated current | 41A | Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 |
Approvals per | CSA | Rated voltage UL (Use Group B) | 300V |
Rated current UL (Use Group B) | 26A | Rated voltage UL (Use Group D) | 300V |
Rated current UL (Use Group D) | 10A | Rated voltage CSA (Use Group B) | 300V |
Rated current CSA (Use Group B) | 26A | Rated voltage CSA (Use Group D) | 300V |
Rated current CSA (Use Group D) | 5A | Connection technology | Push-in CAGE CLAMP? |
Actuation type | Operating tool | Solid conductor | 0.2 … 6?mm2?/ 24 … 10?AWG |
Fine-stranded conductor | 0.2 … 6?mm2?/ 24 … 10?AWG | Fine-stranded conductor; with insulated ferrule | 0.25 … 2.5?mm2 |
Fine-stranded conductor; with uninsulated ferrule | 0.25 … 2.5?mm2 | Fine-stranded conductor; with twin ferrule | 0.25 … 1.5?mm2 |
Strip length | 10 … 12?mm?/ 0.39 … 0.47?inches | Conductor connection direction to PCB | 0° |
Number of poles | 1 |
