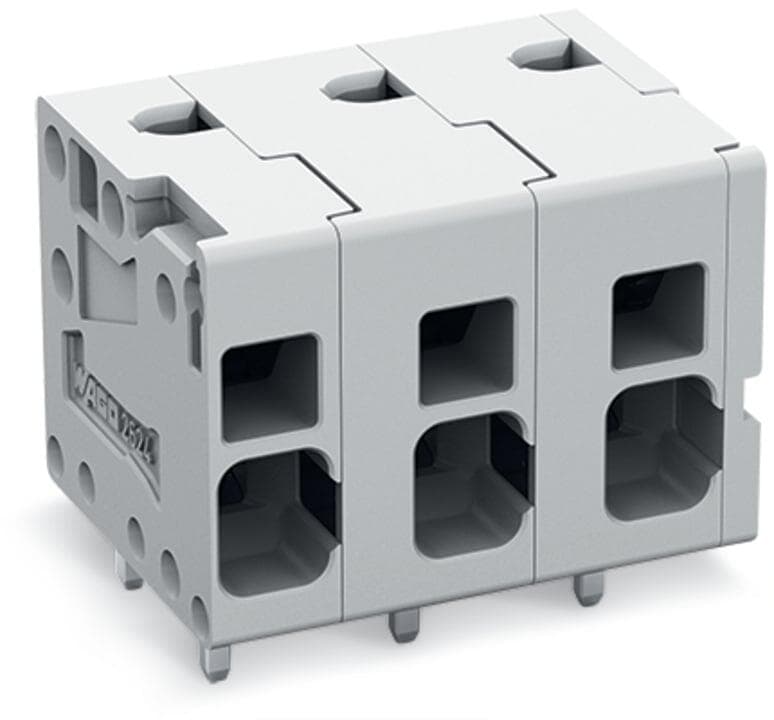

Product Model
2624-1303
Selling Points
- 1Intuitive Tool Operation: Easy to use with an integrated lever for secure conductor insertion.
- 2Push-in CAGE CLAMP Technology: Simplifies the termination process for solid conductors.
- 3Versatile Conductor Range: Suitable for conductors from 0.2 to 6 mm².
- 4High Voltage Rating: Supports nominal voltages up to 1000 V.
- 5Durable Design: Built to withstand rated surge voltages of up to 8 kV.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Variants: | Other pole numbers | Clamping units | 3 |
Total number of potentials | 3 | Number of connection types | 1 |
Number of levels | 1 | Pin spacing | 7.5?mm?/ 0.295?inches |
Width | 21.5?mm?/ 0.846?inches | Height | 19.4?mm?/ 0.764?inches |
Height from the surface | 15.4?mm?/ 0.606?inches | Depth | 16.3?mm?/ 0.642?inches |
Solder pin length | 4mm | Solder pin dimensions | 0.8 x 1?mm |
Drilled hole diameter with tolerance | 1.3(+0.1)mm | Mounting type | Feed-through mounting |
PCB contact | THT | Solder pin arrangement | over the entire terminal strip (in-line) |
Number of solder pins per potential | 2 | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Clamping spring material | Chrome-nickel spring steel (CrNi) | Contact material | Electrolytic copper (ECu) |
Contact plating | Tin | Weight | 5.5g |
Limit temperature range | -60 … +105?°C | Processing temperature | -35 … +60?°C |
Continuous operating temperature | -60 … +105?°C | eCl@ss 10.0 | 27-44-04-01 |
eCl@ss 9.0 | 27-44-04-01 | ETIM 9.0 | EC002643 |
ETIM 8.0 | EC002643 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 120?pcs | Packaging type | box |
Country of origin | PL | GTIN | 4055143578424 |
Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | IEC/EN 60664-1 | Rated voltage (III / 3) | 630V |
Rated impulse voltage (III / 3) | 6kV | Rated voltage (III/2) | 1000V |
Rated surge voltage (III/2) | 6kV | Nominal voltage (II/2) | 1000V |
Rated surge voltage (II/2) | 6kV | Rated current | 41A |
Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 | Approvals per | CSA |
Rated voltage UL (Use Group B) | 300V | Rated current UL (Use Group B) | 26A |
Rated voltage UL (Use Group C) | 150V | Rated current UL (Use Group C) | 26A |
Rated voltage UL (Use Group D) | 300V | Rated current UL (Use Group D) | 10A |
Rated voltage CSA (Use Group B) | 300V | Rated current CSA (Use Group B) | 26A |
Rated voltage CSA (Use Group D) | 300V | Rated current CSA (Use Group D) | 5A |
Connection technology | Push-in CAGE CLAMP? | Actuation type | Operating tool |
Solid conductor | 0.2 … 6?mm2?/ 24 … 10?AWG | Fine-stranded conductor | 0.2 … 6?mm2?/ 24 … 10?AWG |
Fine-stranded conductor; with insulated ferrule | 0.25 … 2.5?mm2 | Fine-stranded conductor; with uninsulated ferrule | 0.25 … 2.5?mm2 |
Fine-stranded conductor; with twin ferrule | 0.25 … 1.5?mm2 | Strip length | 10 … 12?mm?/ 0.39 … 0.47?inches |
Conductor connection direction to PCB | 0° | Number of poles | 3 |
Specifications may be subject to change without notice
