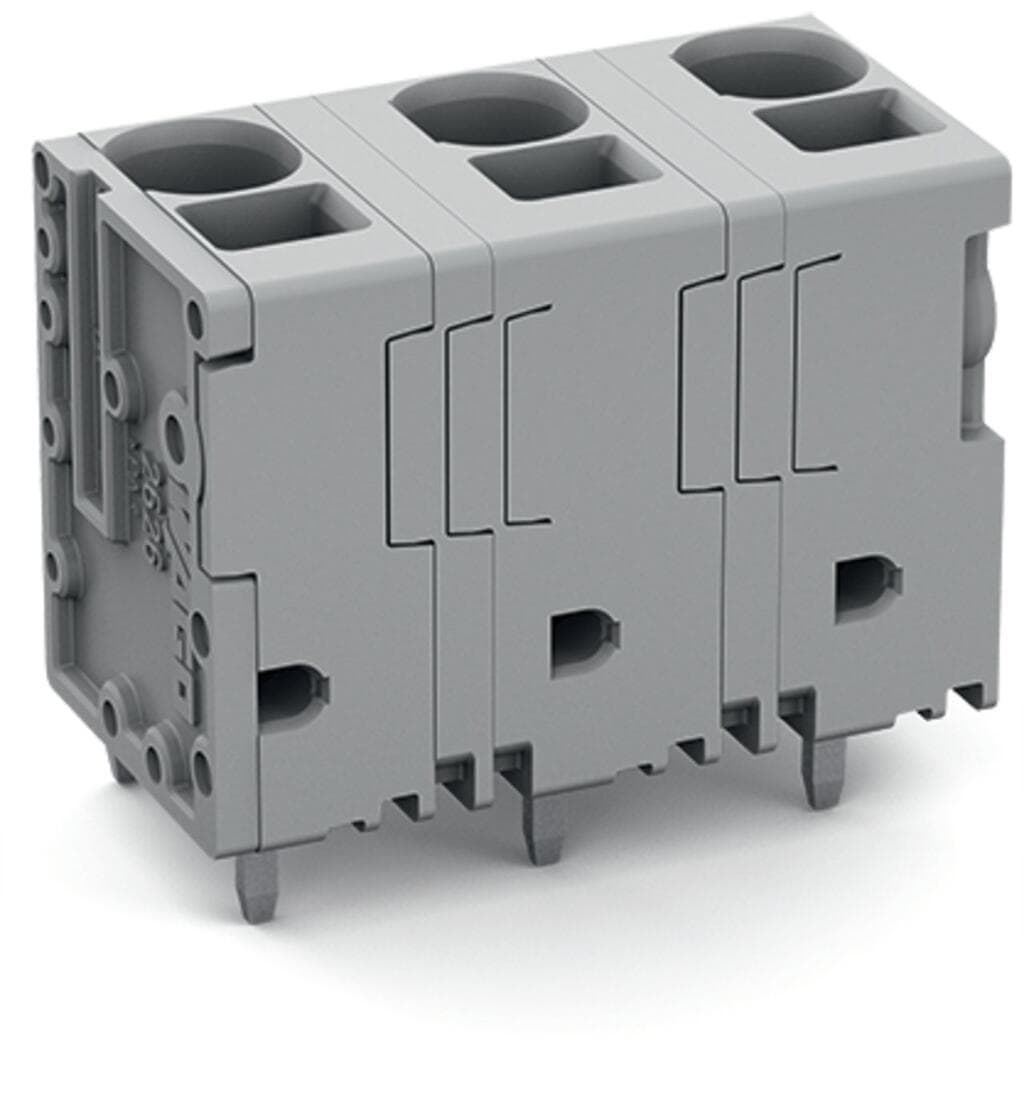

Product Model
2626-3359
Selling Points
- 1Efficient Push-in CAGE CLAMP Connection: Securely connect solid and ferruled conductors with a push-in mechanism.
- 2Versatile 9-Pole Design: Suitable for various applications, including power supply connections and panel feedthrough.
- 3High-Quality Materials: Constructed with polyamide (PA66) insulation and chrome-nickel spring steel clamping spring.
- 4Robust Electrical Ratings: Rated for 48 A at 1000 V, ensuring reliable performance in demanding environments.
- 5Easy Installation and Testing: Conductors can be inserted and tested both parallel and perpendicular to the terminal block.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Variants: | Other pole numbers | Clamping units | 9 |
Total number of potentials | 9 | Number of connection types | 1 |
Number of levels | 1 | Pin spacing | 12.5?mm?/ 0.492?inches |
Width | 109.3?mm?/ 4.303?inches | Height | 28.2?mm?/ 1.11?inches |
Height from the surface | 24.2?mm?/ 0.953?inches | Depth | 18.5?mm?/ 0.728?inches |
Solder pin length | 4mm | Solder pin dimensions | 1.5 x 1?mm |
Drilled hole diameter with tolerance | 2(+0.1)mm | Mounting type | Feed-through mounting |
PCB contact | THT | Solder pin arrangement | over the entire terminal strip (in-line) |
Number of solder pins per potential | 2 | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Clamping spring material | Chrome-nickel spring steel (CrNi) | Contact material | Electrolytic copper (ECu) |
Contact plating | Tin | Weight | 47.7g |
Limit temperature range | -60 … +105?°C | Processing temperature | -35 … +60?°C |
Continuous operating temperature | -60 … +105?°C | ETIM 9.0 | EC002643 |
ETIM 8.0 | EC002643 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 28?pcs | Packaging type | box |
Country of origin | PL | GTIN | 4055143898027 |
Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | IEC/EN 60664-1 | Rated voltage (III / 3) | 1000V |
Rated impulse voltage (III / 3) | 8kV | Rated voltage (III/2) | 1000V |
Rated surge voltage (III/2) | 8kV | Nominal voltage (II/2) | 1000V |
Rated surge voltage (II/2) | 8kV | Rated current | 48A |
Rated voltage UL (Use Group B) | 600V | Rated current UL (Use Group B) | 38A |
Rated voltage UL (Use Group C) | 600V | Rated current UL (Use Group C) | 38A |
Approvals per | CSA | Rated voltage CSA (Use Group B) | 600V |
Rated current CSA (Use Group B) | 38A | Rated voltage CSA (Use Group C) | 600V |
Rated current CSA (Use Group C) | 38A | Connection technology | Push-in CAGE CLAMP? |
Actuation type | Operating tool | Solid conductor | 0.2 … 10?mm2?/ 24 … 8?AWG |
Fine-stranded conductor | 0.2 … 10?mm2?/ 24 … 8?AWG | Fine-stranded conductor; with insulated ferrule | 0.25 … 6?mm2 |
Fine-stranded conductor; with uninsulated ferrule | 0.25 … 6?mm2 | Fine-stranded conductor; with twin ferrule | 0.25 … 2.5?mm2 |
Strip length | 13 … 15?mm?/ 0.51 … 0.59?inches | Conductor connection direction to PCB | 90° |
Number of poles | 9 |
Specifications may be subject to change without notice
