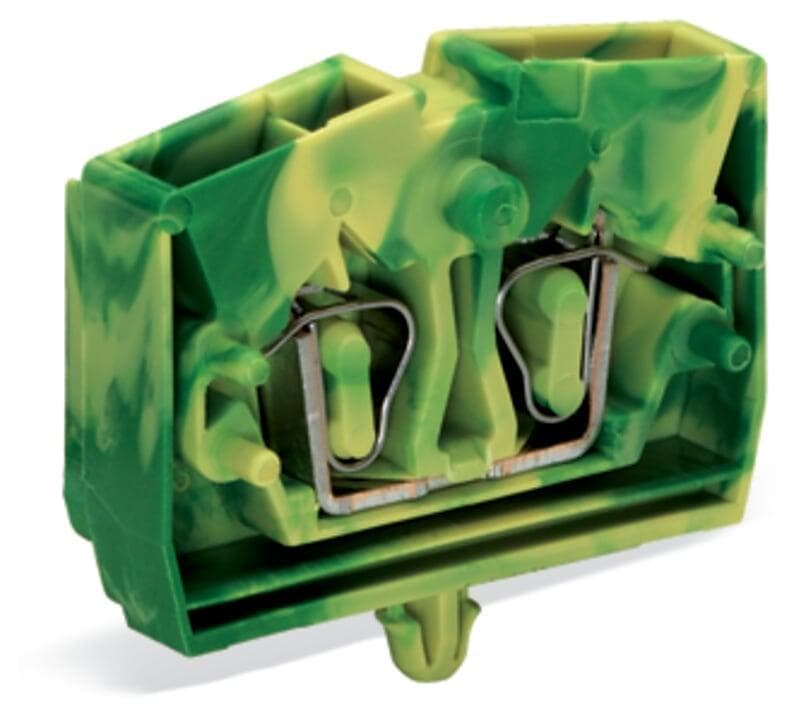

WAGO 264-317 2-Conductor Terminal Block - High-Quality Connectivity

Selling Points

1CAGE CLAMP technology ensures fast, vibration-proof, and maintenance-free connections.
2Snap-in mounting foot for effortless plate thickness adjustment (0.6 - 1.2 mm).
3Green-yellow color with a depth of 32 mm and width of 6 mm for space-efficient installations.
4Suitable for various applications, including rail-mounted and chassis-mounted systems.
5Industry-proven spring pressure connection technology for reliable electrical connections.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Clamping units	2	Total number of potentials	1
Number of levels	1	Width	6?mm?/ 0.236?inches
Height from the surface	22.1?mm?/ 0.87?inches	Depth	32?mm?/ 1.26?inches
Design	horizontal type	Mounting type	Snap-in foot
Marking level	Center marking	Note (material data)	Information on material specifications can be found here
Color	green-yellow	Material group	I
Insulation material (main housing)	Polyamide (PA66)	Flammability class per UL94	V0
Fire load	0.076MJ	Halogen-free	Yes
Weight	3.9g	Processing temperature	-35 … +85?°C
Continuous operating temperature	-60 … +105?°C	Product Group	9 (Std Chassis Mt Blocks)
eCl@ss 10.0	27-14-11-06	eCl@ss 9.0	27-14-11-06
ETIM 9.0	EC001284	ETIM 8.0	EC001284
ECCN	NO US CLASSIFICATION	PU (SPU)	100?pcs
Packaging type	box	Country of origin	CH
GTIN	4044918415255	Customs tariff number	8536904000
RoHS Compliance Status	Compliant,No Exemption	Connection technology	CAGE CLAMP?
Actuation type	Operating tool	Connectable conductor materials	Copper
Solid conductor	0.08 … 2.5?mm2?/ 28 … 12?AWG	Fine-stranded conductor	0.08 … 2.5?mm2?/ 28 … 12?AWG
Note (conductor cross-section)	12 AWG: THHN, THWN	Strip length	8 … 9?mm?/ 0.31 … 0.35?inches
Wiring direction	Front-entry wiring

Specifications may be subject to change without notice
