Product Model

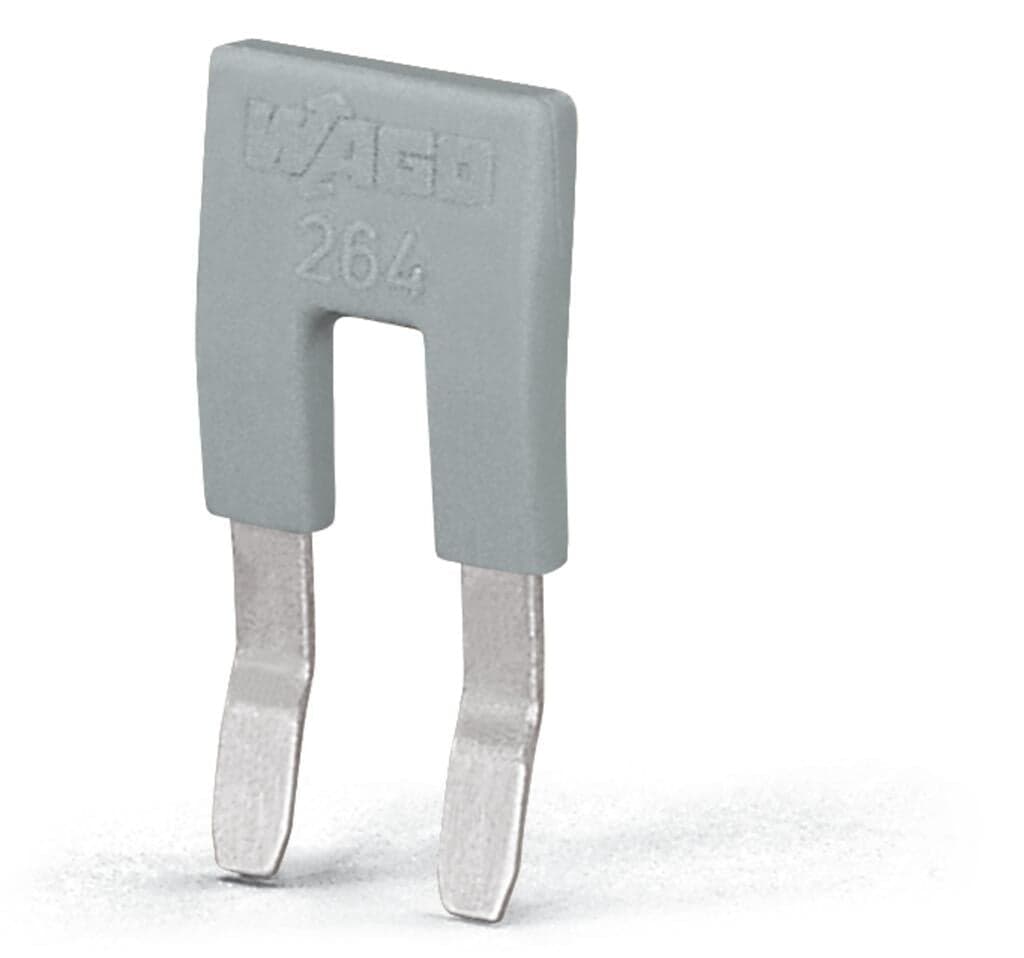

264-402
Selling Points
- 1Reduces conductor size to 1.5 mm for efficient connections.
- 2Insulated and 2-way for safe and reliable use.
- 316 A current rating for high-performance applications.
- 4Overvoltage category III/pollution 3 deg legend ratings for enhanced safety.
- 5Gray color for easy identification in electrical systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 10?mm?/ 0.394?inches | Height | 3?mm?/ 0.118?inches |
Jumper assignment | 1-2 | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.005MJ | Weight | 0.5g |
eCl@ss 10.0 | 27-14-11-40 | eCl@ss 9.0 | 27-14-11-40 |
ETIM 9.0 | EC000489 | ETIM 8.0 | EC000489 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 200?(25)?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4044918458283 | Customs tariff number | 8536698000 |
RoHS Compliance Status | Compliant,No Exemption | Rated current | 16A |
Specifications may be subject to change without notice
