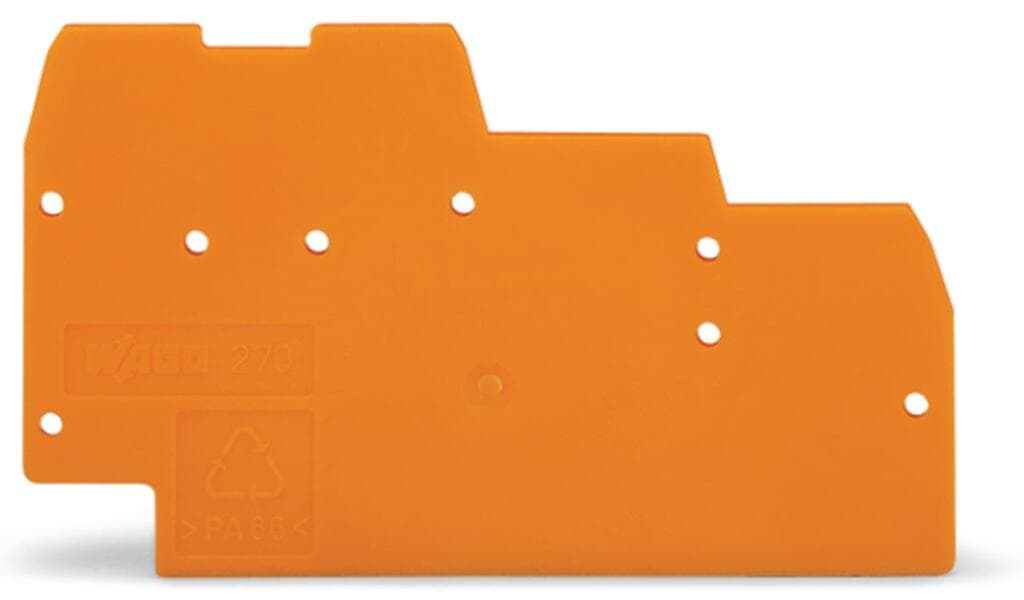

Product Model
270-321
Selling Points
- 1High-Quality Material: Made from durable, 1mm thick material for long-lasting performance.
- 2Fire Resistance: Meets stringent fire safety standards with a flammability class of V0 per UL94.
- 3Robust Design: Specifically designed for triple-deck terminal blocks, ensuring secure connections.
- 4Compact Dimensions: Measures 68 mm in depth, 39 mm in height, and 1 mm in width.
- 5Orange Color: Easily identifiable with its vibrant orange color, enhancing visibility in complex electrical systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 1?mm?/ 0.039?inches | Height | 68?mm?/ 2.677?inches |
Depth | 39?mm?/ 1.535?inches | Note (material data) | Information on material specifications can be found here |
Color | orange | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.071MJ | Weight | 2.4g |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-33 |
eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?(25)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4017332696982 |
Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
