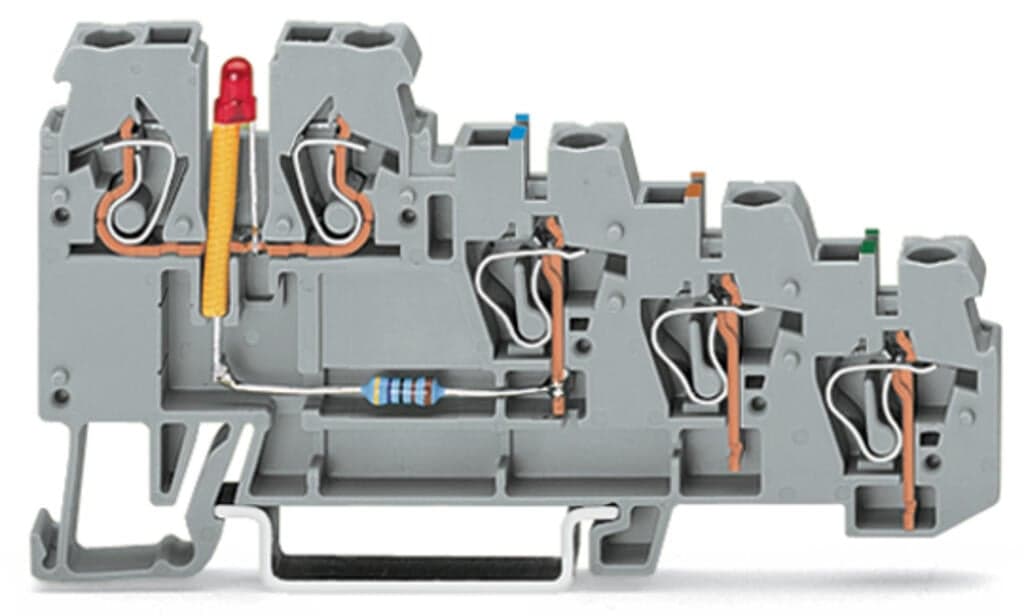

Product Model
270-570/281-434
Selling Points
- 1Designed for PNP (high-side) switching sensors.
- 2Secure and reliable connections for wires up to 2.5mm².
- 3Visual confirmation of sensor status with a red LED light.
- 4Easy installation on standard DIN-35 rail systems.
- 5Durable and easy-to-spot gray color for improved visibility in industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 5 | Total number of potentials | 4 |
Number of levels | 4 | Width | 5?mm?/ 0.197?inches |
Height | 83?mm?/ 3.268?inches | Depth from upper-edge of DIN-rail | 39?mm?/ 1.535?inches |
Design | horizontal type | Mounting type | DIN-35 rail |
Marking level | Side marking | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.207MJ | Weight | 10g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-28 |
eCl@ss 9.0 | 27-14-11-28 | ETIM 9.0 | EC000900 |
ETIM 8.0 | EC000900 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 50?pcs | Packaging type | box |
Country of origin | CN | GTIN | 4050821283263 |
Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Rated current (note) | LED power consumption: 4.8 mA | Power loss, per pole (potential) | 0.431W |
Rated current I<sub>N</sub> for specified power loss | 18A | Resistance value for specified, current-dependent power loss | 0.001Ω |
Voltage type 1 | DC | Nominal voltage | 24V |
LED schaltend für | PNP | Connection technology | CAGE CLAMP? |
Actuation type | Operating tool | Connectable conductor materials | Copper |
Solid conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
Note (conductor cross-section) | 12 AWG: THHN, THWN | Strip length | 6 … 7?mm?/ 0.24 … 0.28?inches |
Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
