Product Model

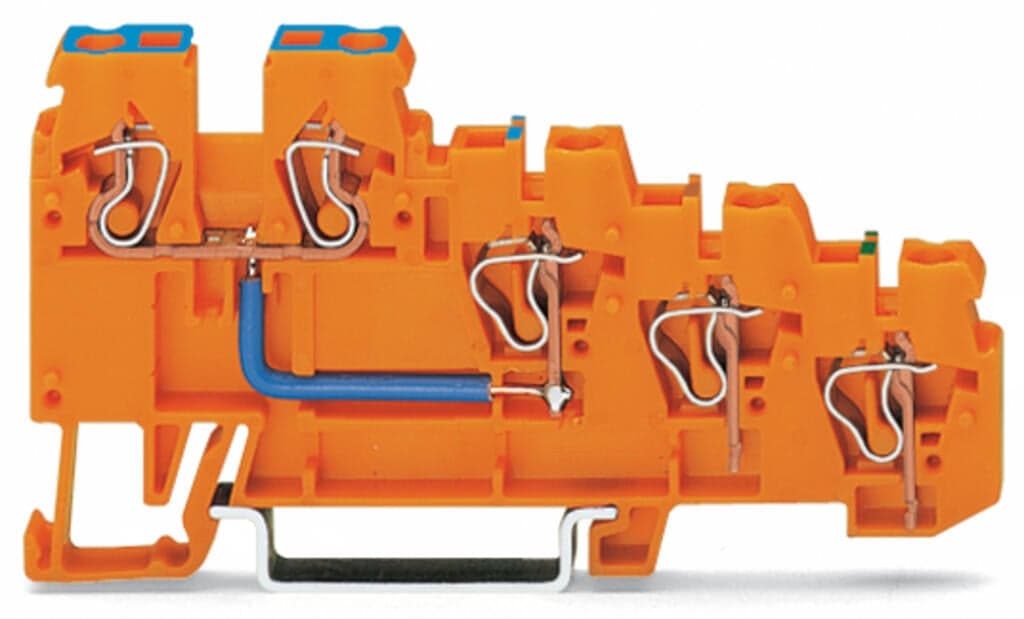

270-574
Selling Points
- 1High-Quality CAGE CLAMP Connections: Secure and reliable connections ensure efficient signal transmission.
- 2DIN-35 Rail Mounting: Easy installation on standard DIN rails for versatile application.
- 318A Rated Current: Handles high current requirements with ease, suitable for demanding industrial use.
- 4Front-Entry Wiring: Convenient and accessible wiring design for easy maintenance.
- 5Compliant with Safety Standards: Meets IEC/EN 60664-1 and other safety standards for reliable operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | Internal bridge: 9 A | Clamping units | 5 |
Total number of potentials | 3 | Number of levels | 4 |
Width | 5?mm?/ 0.197?inches | Height | 83?mm?/ 3.268?inches |
Depth from upper-edge of DIN-rail | 39?mm?/ 1.535?inches | Design | horizontal type |
Mounting type | DIN-35 rail | Marking level | Side marking |
Note (material data) | Information on material specifications can be found here | Color | orange |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 1.405MJ |
Weight | 11g | Processing temperature | -35 … +85?°C |
Continuous operating temperature | -60 … +105?°C | Product Group | 1 (Rail Mounted Terminal Blocks) |
eCl@ss 10.0 | 27-14-11-28 | eCl@ss 9.0 | 27-14-11-28 |
ETIM 9.0 | EC000900 | ETIM 8.0 | EC000900 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 10?pcs |
Packaging type | box | Country of origin | CN |
GTIN | 4045454193829 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption | Rated voltage (III / 3) | 250V |
Rated impulse voltage (III / 3) | 4kV | Rated current | 18A |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Power loss, per pole (potential) | 0.431W |
Rated current I<sub>N</sub> for specified power loss | 18A | Resistance value for specified, current-dependent power loss | 0.001Ω |
Connection technology | CAGE CLAMP? | Actuation type | Operating tool |
Connectable conductor materials | Copper | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Note (conductor cross-section) | 12 AWG: THHN, THWN |
Strip length | 6 … 7?mm?/ 0.24 … 0.28?inches | Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
