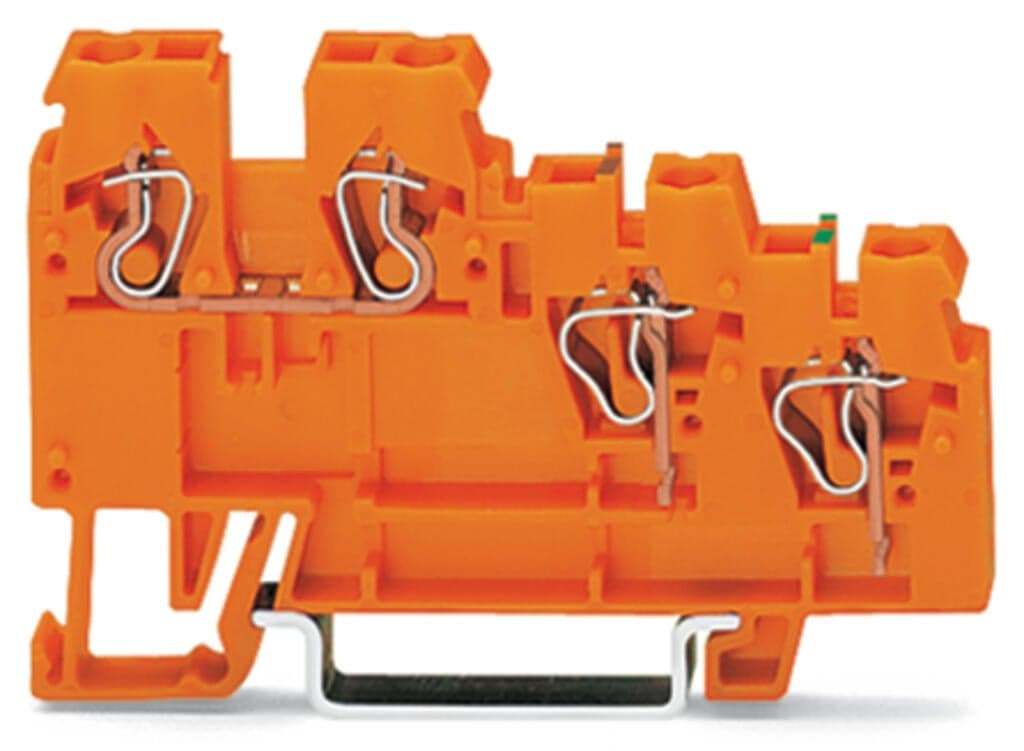

Product Model
270-586
Selling Points
- 1Efficient Connection Technology: Utilizes CAGE CLAMP for secure and easy wire connections.
- 2High Current Rating: Supports up to 18A for reliable operation in various applications.
- 3DIN Rail Mounting: Designed for easy installation on DIN rail systems.
- 4Colored Conductor Entries: Enhances visibility and reduces wiring errors with colored entries.
- 5Compact Design: Measures 68 mm in depth and 5 mm in width for space-efficient use.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 4 | Total number of potentials | 3 |
Number of levels | 3 | Width | 5?mm?/ 0.197?inches |
Height | 68?mm?/ 2.677?inches | Depth from upper-edge of DIN-rail | 39?mm?/ 1.535?inches |
Design | horizontal type | Mounting type | DIN-35 rail |
Marking level | Side marking | Note (material data) | Information on material specifications can be found here |
Color | orange | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.176MJ | Weight | 8.7g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-28 |
eCl@ss 9.0 | 27-14-11-28 | ETIM 9.0 | EC000900 |
ETIM 8.0 | EC000900 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 10?pcs | Packaging type | box |
Country of origin | CN | GTIN | 4050821035299 |
Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Rated voltage (III / 3) | 250V | Rated impulse voltage (III / 3) | 4kV |
Rated current | 18A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
Power loss, per pole (potential) | 0.431W | Rated current I<sub>N</sub> for specified power loss | 18A |
Resistance value for specified, current-dependent power loss | 0.001Ω | Connection technology | CAGE CLAMP? |
Actuation type | Operating tool | Connectable conductor materials | Copper |
Solid conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
Note (conductor cross-section) | 12 AWG: THHN, THWN | Strip length | 6 … 7?mm?/ 0.24 … 0.28?inches |
Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
