Product Model

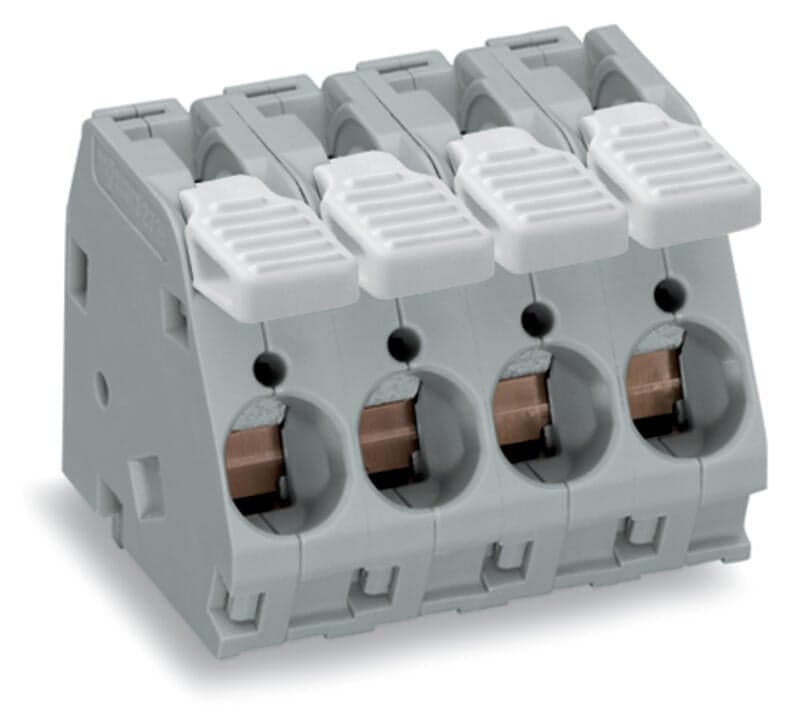

2716-102
Selling Points
- 1High current rating up to 76A for efficient conductivity.
- 2Lever-actuated CAGE CLAMP technology for secure connections.
- 3Compatible with 16 to 6 AWG solid conductors and fine stranded wires.
- 4RoHS compliant and meets CSA, UL 1059, and other safety standards.
- 5Durable construction with polyamide 66 insulation and chrome nickel spring steel clamping spring.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Variants: | Other pole numbers | Clamping units | 2 |
Total number of potentials | 2 | Number of connection types | 1 |
Number of levels | 1 | Pin spacing | 10 mm / 0.394 inches |
Width | 20 mm / 0.787 inches | Height | 33.3 mm / 1.311 inches |
Height from the surface | 28.8 mm / 1.134 inches | Depth | 30 mm / 1.181 inches |
Solder pin length | 4.5mm | Solder pin dimensions | 0.95 x 1.2 mm |
Drilled hole diameter with tolerance | 1.6(+0.1)mm | PCB contact | THT |
Solder pin arrangement | over the entire terminal strip (in-line) | Number of solder pins per potential | 4 |
Note (material data) | Information on material specifications can be found here | Color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Clamping spring material | Chrome-nickel spring steel (CrNi) |
Contact material | Electrolytic copper (ECu) | Contact plating | Tin |
Fire load | 0.325MJ | Weight | 17.8g |
Limit temperature range | -60 … +105 °C | Product Group | 4 (Printed Circuit Connectors) |
eCl@ss 10.0 | 27-44-04-01 | eCl@ss 9.0 | 27-44-04-01 |
ETIM 9.0 | EC002643 | ETIM 8.0 | EC002643 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 65 pcs |
Packaging type | Box | Country of origin | PL |
GTIN | 4045454739140 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
Rated voltage (III / 3) | 320V | Rated impulse voltage (III / 3) | 4kV |
Rated voltage (III/2) | 320V | Rated surge voltage (III/2) | 4kV |
Nominal voltage (II/2) | 630V | Rated surge voltage (II/2) | 4kV |
Rated current | 76A | Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 |
Approvals per | UL 1059 | Rated voltage UL (Use Group B) | 300V |
Rated current UL (Use Group B) | 55A | Rated voltage UL (Use Group C) | 150V |
Rated current UL (Use Group C) | 55A | Rated voltage UL (Use Group D) | 300V |
Rated current UL (Use Group D) | 10A | Connection technology | CAGE CLAMP? |
Actuation type | Lever | Solid conductor | 1.5 … 16 mm2 / 16 … 6 AWG |
Fine-stranded conductor | 1.5 … 16 mm2 / 16 … 6 AWG | Fine-stranded conductor; with insulated ferrule | 1.5 … 10 mm2 |
Fine-stranded conductor; with uninsulated ferrule | 1.5 … 10 mm2 | Strip length | 12 … 13 mm / 0.47 … 0.51 inches |
Conductor connection direction to PCB | 30° | Number of poles | 2 |
