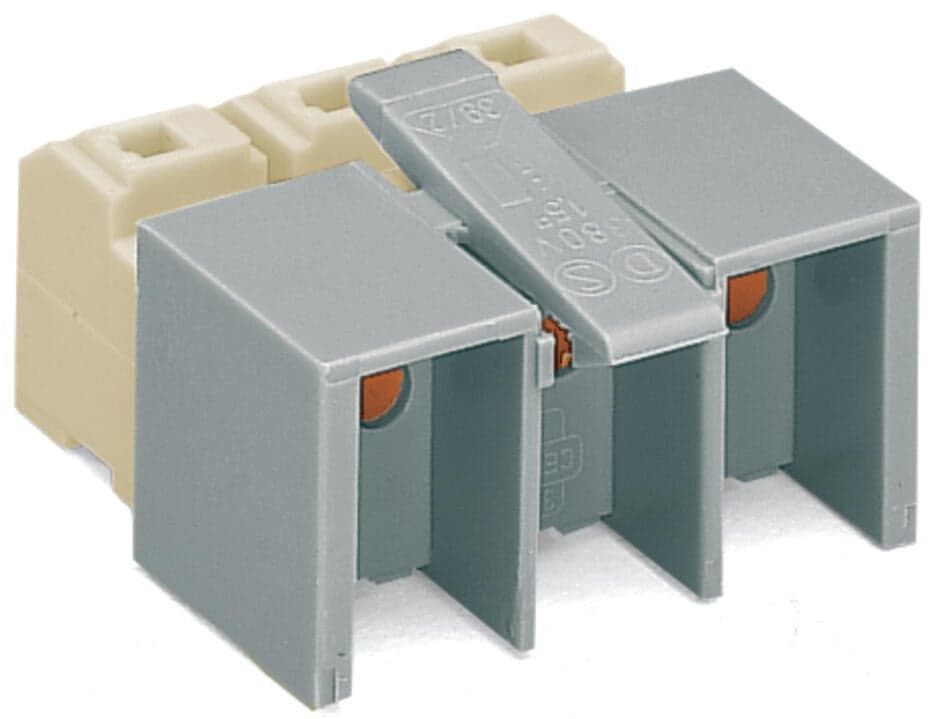

Product Model
272-403/272-489
Selling Points
- 1High-Quality Connectivity: Ensures reliable and efficient connections in electrical and automation systems.
- 2Durable Design: Built with durable materials for long-lasting performance.
- 3Compliant with Standards: Meets IEC/EN 60664-1 ratings for voltage and impulse voltage.
- 4Versatile Compatibility: Compatible with other WAGO products and suitable for multicore cables.
- 5Easy Installation: Simple to assemble with no ground contact, push-buttons, or snap-in mounting feet.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 6 | Total number of potentials | 3 |
Number of connection types | 1 | Width | 33?mm?/ 1.299?inches |
Height | 15.3?mm?/ 0.602?inches | Depth | 35.95?mm?/ 1.415?inches |
Note (material data) | Information on material specifications can be found here | Color | white/gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V2 | Fire load | 0.399MJ |
Weight | 12.1g | Product Group | 8 (Misc. Chassis Mount Blocks) |
eCl@ss 10.0 | 27-44-03-14 | eCl@ss 9.0 | 27-44-03-14 |
ETIM 9.0 | EC002560 | ETIM 8.0 | EC000458 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 500?pcs |
Packaging type | bag | Country of origin | DE |
GTIN | 4044918406178 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
Rated voltage (III/2) | 200V | Rated surge voltage (III/2) | 4kV |
Nominal voltage (II/2) | 400V | Rated surge voltage (II/2) | 4kV |
Rated current | 16A | Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 |
Connection technology | PUSH WIRE? | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
Number of poles | 3 |
Specifications may be subject to change without notice
