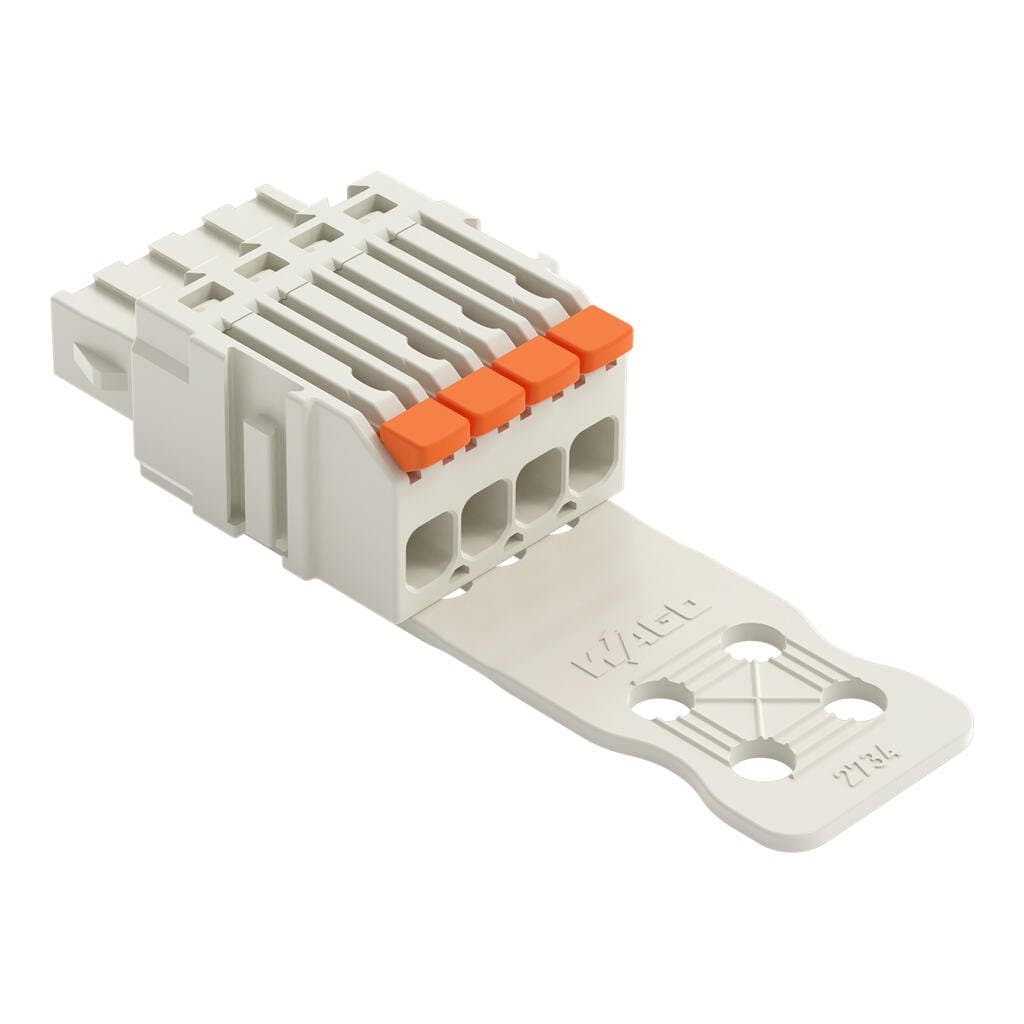

Product Model
2734-1104/327-000/334-000
Selling Points
- 1Durable and reliable electrical connectors designed for heavy-duty applications.
- 2Versatile connections suitable for various industries including automation, manufacturing, and more.
- 3High-quality materials ensure long-lasting performance and resistance to environmental factors.
- 4Easy to install and maintain, reducing downtime and increasing efficiency.
- 5Meets or exceeds industry standards for safety and performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | TheMCS – MULTI CONNECTION SYSTEMincludes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated. | Variants: | Other pole numbers |
Clamping units | 4 | Total number of potentials | 4 |
Number of connection types | 1 | Number of levels | 1 |
Pin spacing | 3.5?mm?/ 0.138?inches | Width | 16.4?mm?/ 0.646?inches |
Height | 14.4?mm?/ 0.567?inches | Depth | 46.4?mm?/ 1.827?inches |
Variable coding | Yes | Anti-rotation protection | Yes |
Contact type (pluggable connector) | Female connector/socket | Connector (connection type) | for conductor |
Mismating protection | Yes | Plugging without loss of pin spacing | No |
Locking of plug-in connection | none | Strain relief | Strain relief plate |
Note (material data) | Information on material specifications can be found here | Color | light gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Clamping spring material | Chrome-nickel spring steel (CrNi) |
Contact material | Copper alloy | Contact plating | Tin |
Fire load | 0.071MJ | Weight | 3.9g |
Limit temperature range | -60 … +100?°C | Processing temperature | -35 … +60?°C |
ETIM 9.0 | EC002638 | ETIM 8.0 | EC002638 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 50?pcs |
Packaging type | Box | Country of origin | DE |
GTIN | 4066966311105 | Customs tariff number | 85366990990 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
Rated voltage (III / 3) | 160V | Rated impulse voltage (III / 3) | 2.5kV |
Rated voltage (III/2) | 160V | Rated surge voltage (III/2) | 2.5kV |
Nominal voltage (II/2) | 320V | Rated surge voltage (II/2) | 2.5kV |
Rated current | 10A | Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 |
Approvals per | CSA | Rated voltage UL (Use Group B) | 300V |
Rated current UL (Use Group B) | 10A | Rated voltage UL (Use Group D) | 300V |
Rated current UL (Use Group D) | 10A | Rated voltage CSA (Use Group B) | 300V |
Rated current CSA (Use Group B) | 10A | Rated voltage CSA (Use Group D) | 300V |
Rated current CSA (Use Group D) | 10A | Connection technology | Push-in CAGE CLAMP? |
Actuation type | Lever | Solid conductor | 0.14 … 1.5?mm2?/ 26 … 14?AWG |
Solid conductor; push-in termination | 0.34 … 1.5?mm2?/ 22 … 14?AWG | Fine-stranded conductor | 0.14 … 1.5?mm2?/ 26 … 14?AWG |
Fine-stranded conductor; with insulated ferrule | 0.14 … 0.75?mm2 | Fine-stranded conductor; with uninsulated ferrule | 0.14 … 1?mm2 |
Strip length | 9 … 10?mm?/ 0.35 … 0.39?inches | Number of poles | 4 |
Conductor entry direction to mating direction | 0° |
Specifications may be subject to change without notice
