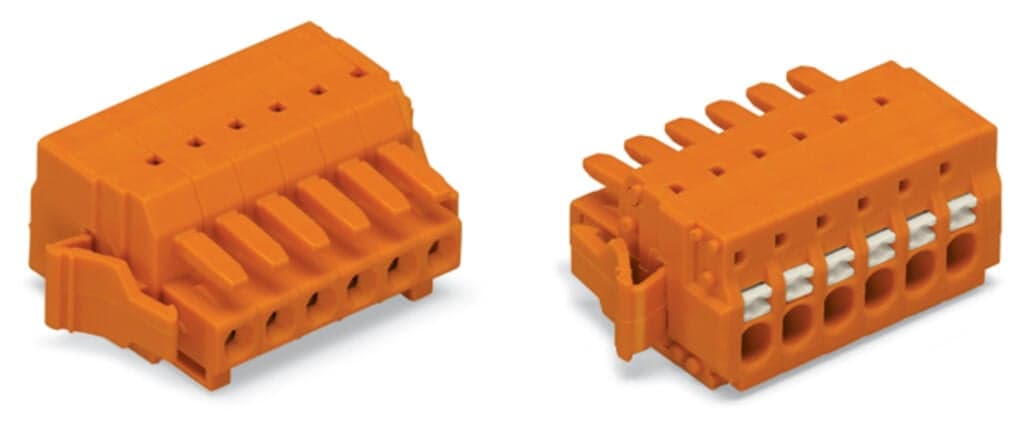

Product Model
2734-219/037-000
Selling Points
- 1100% protected against mismating for secure connections.
- 2Push-button actuation for easy and reliable operation.
- 3Push-in CAGE CLAMP technology ensures secure and efficient connections.
- 4Suitable for electrical and automation applications with 1.5 mm² conductor capacity.
- 5Lateral locking levers provide additional safety and stability in use.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | TheMCS – MULTI CONNECTION SYSTEMincludes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated. | Variants: | Other pole numbers |
Clamping units | 19 | Total number of potentials | 19 |
Number of connection types | 1 | Number of levels | 1 |
Pin spacing | 3.81?mm?/ 0.15?inches | Width | 74.49?mm?/ 2.933?inches |
Height | 13.5?mm?/ 0.531?inches | Depth | 20.4?mm?/ 0.803?inches |
Variable coding | Yes | Anti-rotation protection | Yes |
Contact type (pluggable connector) | Female connector/socket | Connector (connection type) | for conductor |
Mismating protection | Yes | Plugging without loss of pin spacing | No |
Locking of plug-in connection | locking lever | Note (material data) | Information on material specifications can be found here |
Color | orange | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Clamping spring material | Chrome-nickel spring steel (CrNi) | Contact material | Copper alloy |
Contact plating | Tin | Fire load | 0.362MJ |
Weight | 17.8g | Limit temperature range | -60 … +100?°C |
Processing temperature | -35 … +60?°C | eCl@ss 10.0 | 27-44-03-09 |
eCl@ss 9.0 | 27-44-03-09 | ETIM 9.0 | EC002638 |
ETIM 8.0 | EC002638 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 25?pcs | Packaging type | box |
Country of origin | PL | GTIN | 4055143383745 |
Customs tariff number | 8536694040 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | IEC/EN 60664-1 | Rated voltage (III / 3) | 160V |
Rated impulse voltage (III / 3) | 2.5kV | Rated voltage (III/2) | 160V |
Rated surge voltage (III/2) | 2.5kV | Nominal voltage (II/2) | 320V |
Rated surge voltage (II/2) | 2.5kV | Rated current | 10A |
Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 | Approvals per | CSA |
Rated voltage UL (Use Group B) | 300V | Rated current UL (Use Group B) | 10A |
Rated voltage UL (Use Group D) | 300V | Rated current UL (Use Group D) | 10A |
Rated voltage CSA (Use Group B) | 300V | Rated current CSA (Use Group B) | 10A |
Rated voltage CSA (Use Group D) | 300V | Rated current CSA (Use Group D) | 10A |
Connection technology | Push-in CAGE CLAMP? | Actuation type | Push-button |
Actuation direction 1 | Operation parallel to conductor entry | Solid conductor | 0.2 … 1.5?mm2?/ 24 … 16?AWG |
Fine-stranded conductor | 0.2 … 1.5?mm2?/ 24 … 16?AWG | Fine-stranded conductor; with insulated ferrule | 0.25 … 0.75?mm2 |
Fine-stranded conductor; with uninsulated ferrule | 0.25 … 1.5?mm2 | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
Number of poles | 19 | Conductor entry direction to mating direction | 0° |
Specifications may be subject to change without notice
