Product Model

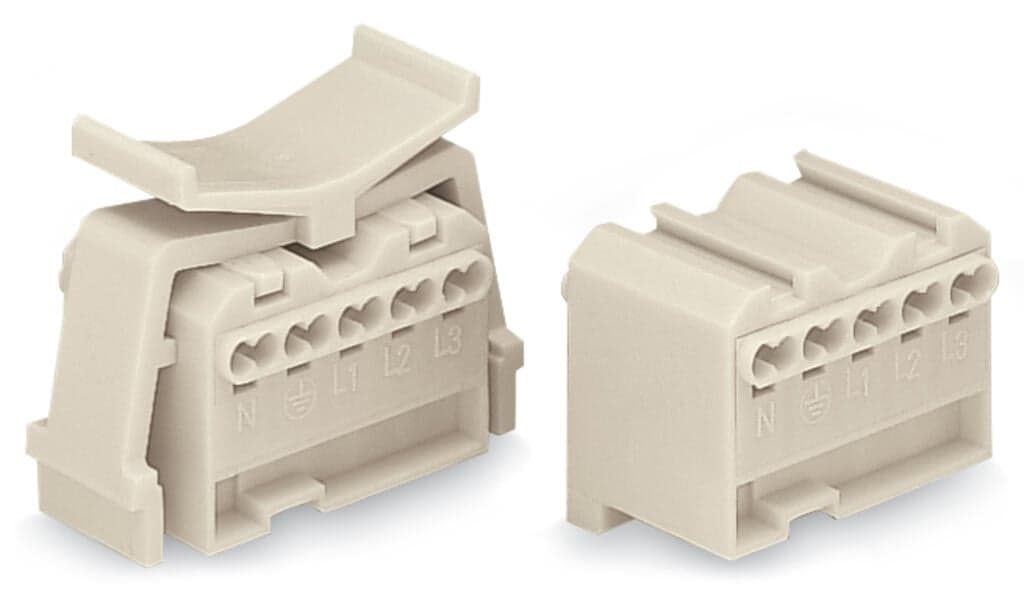

277-121
Selling Points
- 1Secure and Reliable Connections: The WAGO 277-121 connector ensures efficient conductivity and safety with its PUSH WIRE connection technology.
- 2High Voltage Rating: Rated for 400V and 4kV impulse voltage, making it suitable for demanding electrical applications.
- 3Durable Construction: Made from electrocopper contacts and chrome-nickel spring steel, ensuring long-lasting performance.
- 4Easy Installation: Push-in termination simplifies wiring processes, saving time and reducing errors.
- 5Compliant with International Standards: Meets IEC/EN 60664-1 and UL 1059 standards for overvoltage category III and pollution degree 2.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Number of connection types | 1 | Width | 30?mm?/ 1.181?inches |
Height | 31.4?mm?/ 1.236?inches | Depth | 40?mm?/ 1.575?inches |
Note (material data) | Information on material specifications can be found here | Color | white |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V2 | Clamping spring material | Chrome-nickel spring steel (CrNi) |
Contact material | Electrolytic copper (ECu) | Contact plating | Tin |
Fire load | 0.444MJ | Weight | 23.6g |
Temperature stability | 105°C | eCl@ss 10.0 | 27-44-03-14 |
eCl@ss 9.0 | 27-44-03-14 | ETIM 9.0 | EC002560 |
ETIM 8.0 | EC000458 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 250?pcs | Packaging type | bag |
Country of origin | DE | GTIN | 4044918472050 |
Customs tariff number | 8536694040 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | IEC/EN 60664-1 | Rated voltage (III/2) | 400V |
Rated surge voltage (III/2) | 4kV | Rated current | 16A |
Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 | Connection technology | PUSH WIRE? |
Solid conductor | 1.5 … 2.5?mm2?/ 16 … 14?AWG | Strip length | 11 … 12?mm?/ 0.43 … 0.47?inches |
Number of poles | 5 |
Specifications may be subject to change without notice
