Product Model

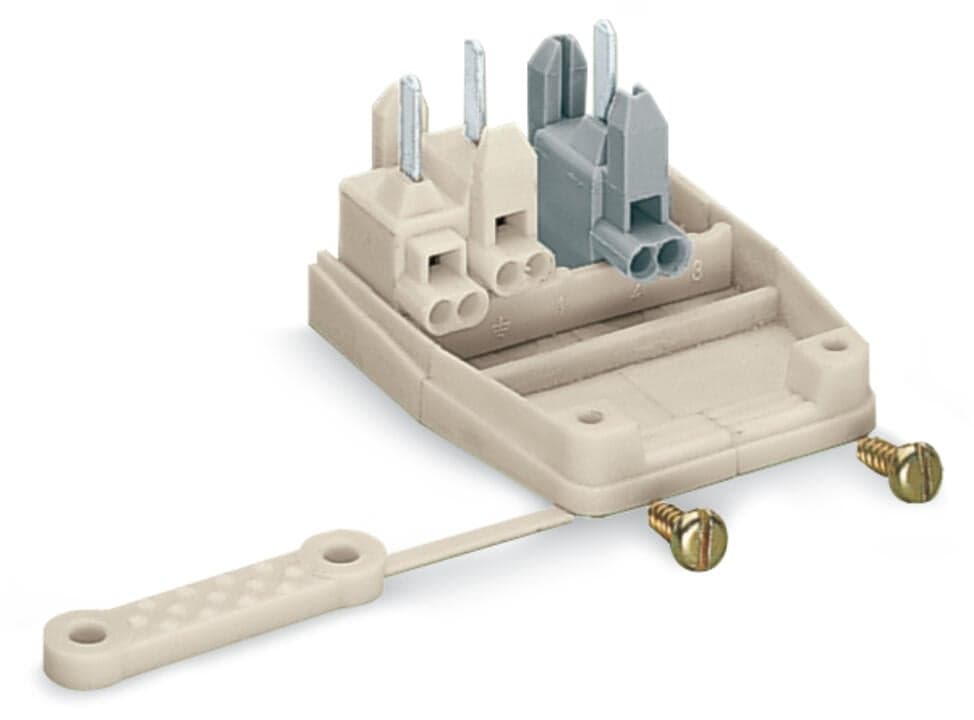

277-126
Selling Points
- 1Ensures secure and stable connections in various applications.
- 2Made with polyamide (PA66) for the main housing, chrome-nickel spring steel (CrNi) for the clamping spring, and electrolytic copper (ECu) for the contacts.
- 3Designed to provide reliable connections by managing wire stress.
- 4Compatible with other WAGO products, making it a preferred choice for professionals.
- 5Compliant with RoHS and various international standards including UL, CSA, and VDE.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Number of connection types | 1 | Width | 45?mm?/ 1.772?inches |
Height | 30.8?mm?/ 1.213?inches | Depth | 40?mm?/ 1.575?inches |
Note (material data) | Information on material specifications can be found here | Color | white/gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V2 | Clamping spring material | Chrome-nickel spring steel (CrNi) |
Contact material | Electrolytic copper (ECu) | Contact plating | Tin |
Fire load | 0.212MJ | Weight | 11.6g |
Temperature stability | 105°C | eCl@ss 10.0 | 27-44-03-14 |
eCl@ss 9.0 | 27-44-03-14 | ETIM 9.0 | EC002560 |
ETIM 8.0 | EC000458 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 250?pcs | Packaging type | bag |
Country of origin | DE | GTIN | 4045454356255 |
Customs tariff number | 8536694040 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | IEC/EN 60664-1 | Rated voltage (III/2) | 400V |
Rated surge voltage (III/2) | 4kV | Rated current | 10A |
Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 | Connection technology | PUSH WIRE? |
Solid conductor | 0.5 … 1?mm2?/ 20 … 18?AWG | Strip length | 10 … 11?mm?/ 0.39 … 0.43?inches |
Number of poles | 3 |
Specifications may be subject to change without notice
