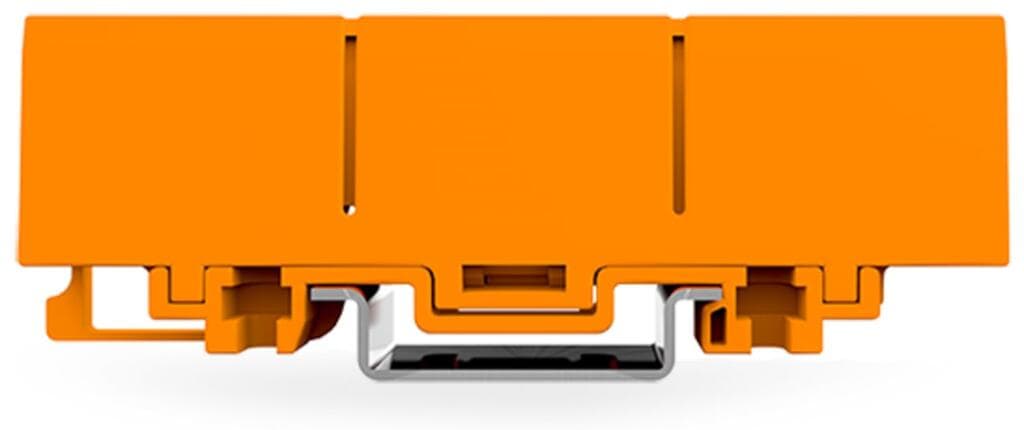

Product Model
2773-500
Selling Points
- 1Mounts easily onto DIN-35 rail or via screws.
- 2Holds up to three 4 mm (12 AWG) connectors in a single carrier.
- 3Quickly exchange connectors without hassle.
- 4Features a large marking area for self-adhesive marking strips or direct marking with permanent felt-tip pens.
- 5Measuring 84 mm x 18 mm x 23 mm, it fits in narrow spaces, holding up to 30 clamping units.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | One single carrier can hold up to 30 clamping units in a very narrow space. Previously, this was only possible using rail-mount terminal blocks.Additional benefits:Mount carrier onto DIN-35 rail or via screws – easily and quicklyAccommodate three 4 mm2 (12 AWG) 2773 Series Connectors in a single carrierEasily exchange connectorsLarge marking area for self-adhesive marking strips or for direct marking with permanent felt-tip pen | Width | 18?mm?/ 0.709?inches |
Height | 84?mm?/ 3.307?inches | Depth from upper-edge of DIN-rail | 23 mm / 0.906 inches |
Depth | 28.9 mm / 1.138 inches | Mounting type | DIN-35 rail |
Suitable | for single- and double-row connectors (2773 Series) | Note (material data) | Information on material specifications can be found here |
Color | orange | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.376MJ | Weight | 12.6g |
ETIM 9.0 | EC002848 | ETIM 8.0 | EC002848 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 50?(10)?pcs |
Packaging type | box | Country of origin | CN |
GTIN | 4055143837439 | Customs tariff number | 3926909985 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
