Product Model

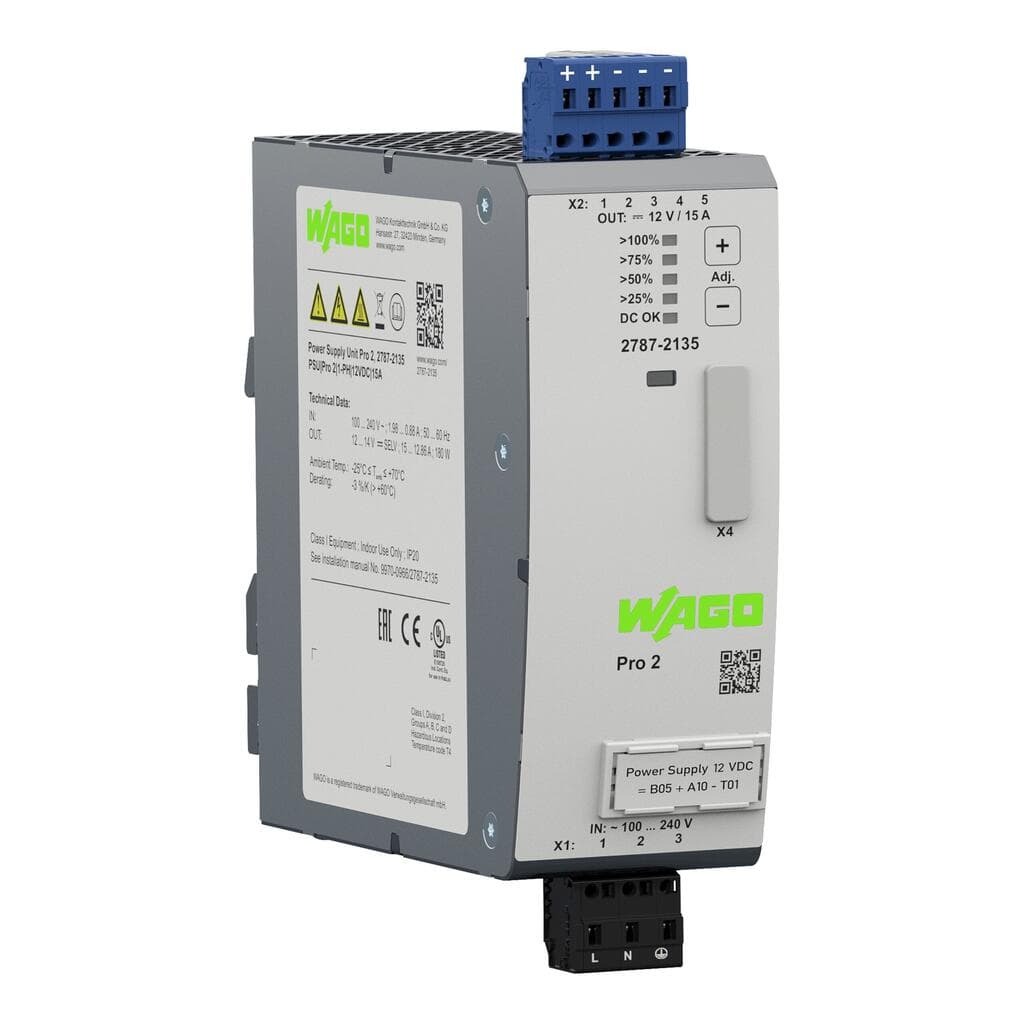

2787-2135
Selling Points
- 1Enhance system reliability with advanced boost features.
- 2Customize protection settings for optimal performance.
- 3Flexible communication options for seamless integration.
- 4Real-time monitoring of power supply status.
- 5Compact design for easy installation on DIN rails.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Isolation voltage (pri.-sec., AC) | 3,510V | Isolation voltage (pri.-PE, AC) | 2,200V |
Isolation voltage (sec.-PE) | DC 0.5?kV | Protection class | I |
Protection type | IP20; per EN 60529 | Overvoltage category | III (≤ 2000 m a.s.l.); II (> 2000 m a.s.l.) |
Pollution degree | 2 | Transient suppression (primary) | Yes |
Short-circuit-protected | Yes | Open-circuit-proof | Yes |
Parallel operation | Yes | Series operation | Yes |
MTBF | > 1,200,000 h (per IEC 61709) | Connection type 1 | Input/output/signaling |
Connection technology | CAGE CLAMP? | WAGO connector | WAGO 721 Series |
Solid conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
Fine-stranded conductor; with insulated ferrule | 2.5 … 1.5?mm2?/ 12 … 16?AWG | Fine-stranded conductor; with uninsulated ferrule | 1.5 … 0.08?mm2?/ 16 … 28?AWG |
Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches | Width | 70?mm?/ 2.756?inches |
Height | 130?mm?/ 5.118?inches | Depth from upper-edge of DIN-rail | 130?mm?/ 5.118?inches |
Note (dimensions) | Height without connector | Mounting type | DIN-35 rail |
Weight | 1000g | Ambient temperature (operation) | -25 … +70 °C (Device starts at ?40 °C (type-tested)) |
Ambient temperature (storage) | -40 … +85 °C | Relative humidity | 5 … 96?% (no condensation permissible) |
Derating | See instruction leaflet | Climatic category | 3K3 (per EN 60721) |
Operating altitude (max.) | 5000m | Conformity marking | CE |
Standards/specifications | SEMI F47 | ETIM 9.0 | EC002540 |
ETIM 8.0 | EC002540 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | Box |
Country of origin | CN | GTIN | 4066966121377 |
Customs tariff number | 85044083900 | RoHS Compliance Status | Compliant,No Exemption |
Phases | 1 | Nominal input voltage [V] | 1 x AC?100 … 240?V |
Input voltage range | 1 x AC 90 … 264 V | Nominal mains frequency range | 50 … 60?Hz |
Input current I<sub>i</sub> | ≤?2?A (240 VAC; Nominal load) | Inrush current | ≤?12?A (after 1 ms) |
Power factor correction (PFC) | Active | Mains failure hold-up time | ≥?40?ms (230?VAC) |
Nominal output voltage [V] | DC?12?V (SELV) | Default setting | DC?12?V |
Nominal output current I<sub>o nom</sub> | 15?A (12?VDC) | Nominal output power | 180W |
Deviation | ≤?1?% | Residual ripple | ≤?70?mV (peak-to-peak) |
Current limitation | 1.1 x Io nom(typ.) | Overload behavior | TopBoost/PowerBoost/Time-limited constant current mode (other overload behaviors can be set) |
PowerBoost | DC?22.5?A (5?s) | TopBoost | Up to 600 % |
Signaling | Digital signal input and output (DI/DO) | Communications | EtherNet/IPTM(2789-9023 Communication Module) |
Power loss P<sub>l</sub> | ≤ 0.8 W (standby); ≤ 2.3 W (no load); ≤ 14 W (230 VAC; nominal load) | Efficiency (typ.) | 95.3?% |
Internal fuse | T 6.3 A / 250 VAC | Backup fusing (recommended) | 16?A (for USA/Canada: 15?A) |
Specifications may be subject to change without notice
