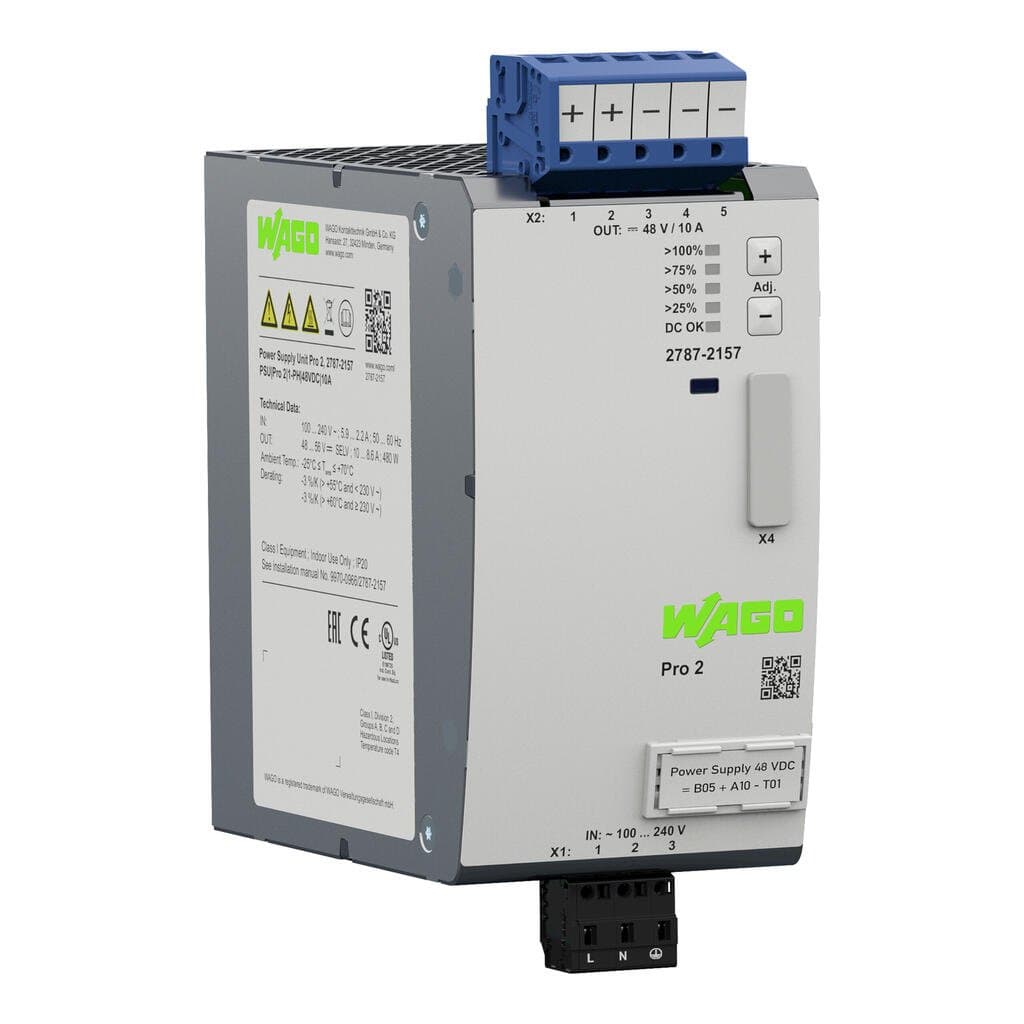

Product Model
2787-2157
Selling Points
- 1Compact design for easy DIN rail mounting.
- 2Configurable digital signal input and output for seamless integration.
- 3Advanced LED indicators for real-time power output and status monitoring.
- 4Suitable for both parallel and series operation with snap-on communication modules.
- 5Free WAGO configuration software for easy setup and monitoring.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Isolation voltage (pri.-sec., AC) | 3,510V | Isolation voltage (pri.-PE, AC) | 2,200V |
Isolation voltage (sec.-PE) | DC 0.5?kV | Protection class | I |
Protection type | IP20; per EN 60529 | Overvoltage category | III (≤ 2000 m a.s.l.); II (> 2000 m a.s.l.) |
Pollution degree | 2 | Transient suppression (primary) | Yes |
Short-circuit-protected | Yes | Open-circuit-proof | Yes |
Parallel operation | Yes | Series operation | Yes |
MTBF | > 800,000 h (per IEC 61709) | Connection type 1 | Input/output/signaling |
Connection technology | CAGE CLAMP? | WAGO connector | WAGO 721 Series |
Solid conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
Fine-stranded conductor; with insulated ferrule | 2.5 … 1.5?mm2?/ 12 … 16?AWG | Fine-stranded conductor; with uninsulated ferrule | 1.5 … 0.08?mm2?/ 16 … 28?AWG |
Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches | Width | 70?mm?/ 2.756?inches |
Height | 130?mm?/ 5.118?inches | Depth from upper-edge of DIN-rail | 130?mm?/ 5.118?inches |
Note (dimensions) | Height without connector | Mounting type | DIN-35 rail |
Weight | 1450g | Ambient temperature (operation) | -25 … +70 °C (Device starts at ?40 °C (type-tested)) |
Ambient temperature (storage) | -40 … +85 °C | Relative humidity | 5 … 96?% (no condensation permissible) |
Derating | See instruction leaflet | Climatic category | 3K3 (per EN 60721) |
Operating altitude (max.) | 5000m | Conformity marking | CE |
Standards/specifications | SEMI F47 | ETIM 9.0 | EC002540 |
ETIM 8.0 | EC002540 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | Box |
Country of origin | CN | GTIN | 4066966121391 |
Customs tariff number | 8504409510 | RoHS Compliance Status | Compliant,No Exemption |
Phases | 1 | Nominal input voltage [V] | 1 x AC?100 … 240?V |
Input voltage range | 1 x AC 90 … 264 V | Nominal mains frequency range | 50 … 60?Hz |
Input current I<sub>i</sub> | ≤?5.9?A (240 VAC; Nominal load) | Inrush current | ≤?12?A (after 1 ms) |
Power factor correction (PFC) | Active | Mains failure hold-up time | ≥?24?ms (230?VAC) |
Nominal output voltage [V] | DC?48?V (SELV) | Output voltage range | DC 48 V |
Default setting | DC?48?V | Nominal output current I<sub>o nom</sub> | 10?A (48 VDC) |
Nominal output power | 480W | Deviation | ≤?1?% |
Residual ripple | ≤?70?mV (peak-to-peak) | Current limitation | 1.1 x Io nom(typ.) |
Overload behavior | TopBoost/PowerBoost/Time-limited constant current mode (other overload behaviors can be set) | PowerBoost | DC?15?A (5?s) |
TopBoost | Up to 600 % | Signaling | Digital signal input and output (DI/DO) |
Communications | EtherNet/IPTM(2789-9023 Communication Module) | Power loss P<sub>l</sub> | ≤ 1.3 W (standby); ≤ 2.6 W (no load); ≤ 24 W (230 VAC; nominal load) |
Efficiency (typ.) | 95.3?% | Internal fuse | T 10 A / 250?VAC |
Backup fusing (recommended) | 16?A (for USA/Canada: 15?A) |
Specifications may be subject to change without notice
