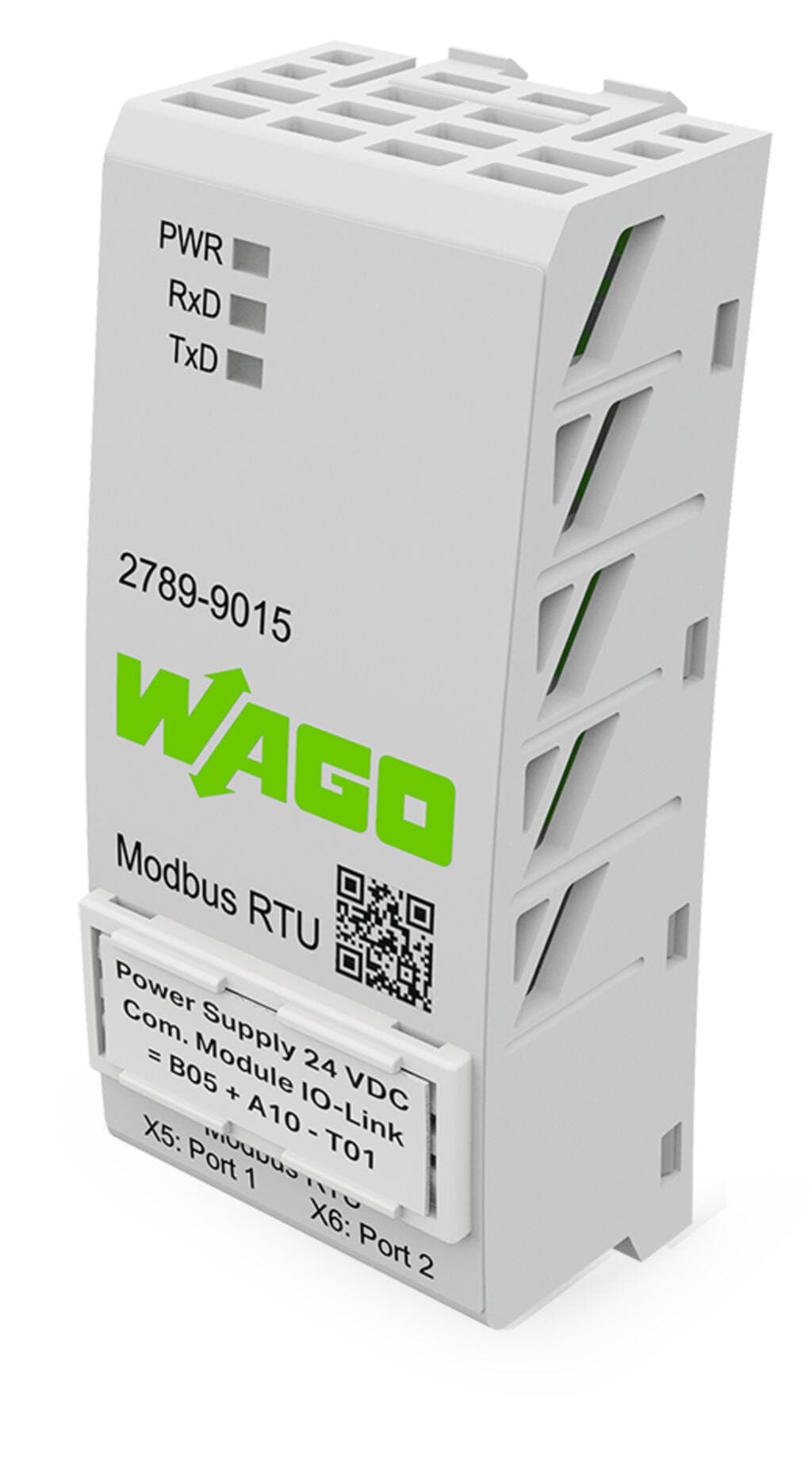

Product Model
2789-9015
Selling Points
- 1Modbus RTU Communication Capability: Supports Modbus RTU protocol via RS-485 for seamless integration with control systems.
- 2DIN Rail Mounting: Designed for easy installation on DIN rail, ensuring compact and efficient use in industrial settings.
- 3High-Temperature Operation: Operates within a wide ambient temperature range of -25°C to +70°C, making it suitable for various environments.
- 4LED Signaling: Includes 1 x LED PWR (green), 1 x LED RxD (yellow), and 1 x LED TxD (yellow) for clear status indication.
- 5Certified Safety Standards: Meets EN 61010-1, EN 61010-2-201, EN 61204-3, UL 61010-1, UL 61010-2-201, and UL HazLoc safety standards for reliable performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Test voltage (input/output) | AC 2?kV;?50?Hz;?1?min | Test voltage (input/output/shield) | 1 kVAC; 50 Hz; 1 min |
Protection class | III | Insulation type | Functional insulation |
Protection type | IP20; per EN 60529 | Pollution degree | 2 |
Pluggable connector | 2 x RJ-45 | Transmission medium | Shielded copper cable |
Width | 35?mm?/ 1.378?inches | Height | 80?mm?/ 3.15?inches |
Depth | 22?mm?/ 0.866?inches | Note (dimensions) | Depth in mounted state |
Mounting type | Snaps onto a Pro?2 Power Supply's communication interface (X4) | Weight | 35g |
Ambient temperature (operation) | -25 … +70 °C | Ambient temperature (storage) | -40 … +85 °C |
Relative humidity | 5 … 95?% (no condensation permissible) | Operating altitude (max.) | 5000m |
Conformity marking | CE | Standards/specifications | EN 61010-1 |
ETIM 9.0 | EC002498 | ETIM 8.0 | EC002498 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | Box | Country of origin | CN |
Customs tariff number | 85176200000 | CAS-No. | 1303-86-2 |
REACH Candidate List Substance | Diboron trioxide | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | ed3d11ae-e2cc-431c-a7da-742bb77a5bef |
SCIP notification number (Belgium) | 1be21ba2-aa0d-4e1a-939e-d330fe737839 | SCIP notification number (Bulgaria) | b678e2ff-57ab-4e94-b49b-e60ab5240526 |
SCIP notification number (Czech Republic) | 34afbb2e-3ff9-4298-8845-281fae4e32b1 | SCIP notification number (Denmark) | 80e0e44b-2d47-44fb-bf7f-e07680faa3c9 |
SCIP notification number (Finland) | 15b393dc-5184-41f0-8aef-a6881cd6f7c6 | SCIP notification number (France) | 37a388c7-7ba8-406b-9eb6-56120dbaea89 |
SCIP notification number (Germany) | 98801cb8-1ff0-4b69-97d3-02ad71250fd9 | SCIP notification number (Hungary) | 98cb9b29-76a1-49e7-93cc-72801b8034d4 |
SCIP notification number (Italy) | 1c5720c6-13db-4393-971c-576ca1007596 | SCIP notification number (Netherlands) | 15876054-7420-41a2-b121-07d5a5bf26cc |
SCIP notification number (Poland) | c48bc48c-f12a-4bcb-bfc0-fd60efcb884f | SCIP notification number (Romania) | 26c99ac4-d488-455a-8ade-739041aff4bf |
SCIP notification number (Sweden) | 31885e80-cd0f-4aa6-9ff8-dbe36cde3c9d | Nominal input voltage [V] | DC?5?V (SELV) |
Input voltage range | DC 4.5 … 5.5 V (SELV) | Signaling | 1 x LED PWR (green) |
Communications | Modbus RTU via RS-485 | Transmission rate | 4.8/115.2 kBd |
Number of devices (max.) | 247 | Transmission medium (communication/fieldbus) | Shielded copper cable |
Specifications may be subject to change without notice
