Product Model
279-339
Selling Points

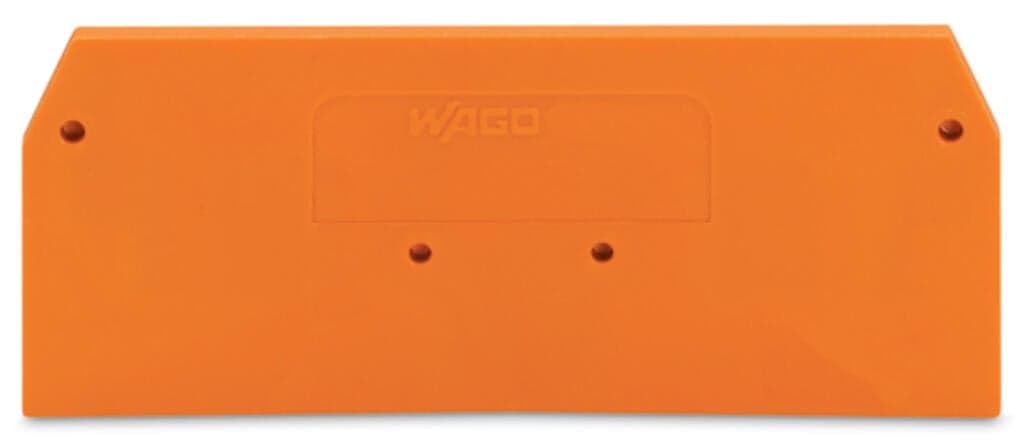

- 1Orange End and Intermediate Plate: 2 mm thick, durable orange color.
- 2UL94 V0 Flammability Class: Meets stringent safety standards for electrical components.
- 3Rail-Mounted Compatibility: Designed for use with rail-mounted terminal blocks.
- 4High Fire Load Resistance: 0.067 MJ fire load resistance for added safety.
- 5Available in Multiples of 25: Order in quantities of 25 or more for efficient inventory management.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 2?mm?/ 0.079?inches | Height | 61.8?mm?/ 2.433?inches |
Depth | 27?mm?/ 1.063?inches | Note (material data) | Information on material specifications can be found here |
Color | orange | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.067MJ | Weight | 2.2g |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-33 |
eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?(25)?pcs | Packaging type | box |
Country of origin | CN | GTIN | 4017332293242 |
Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
