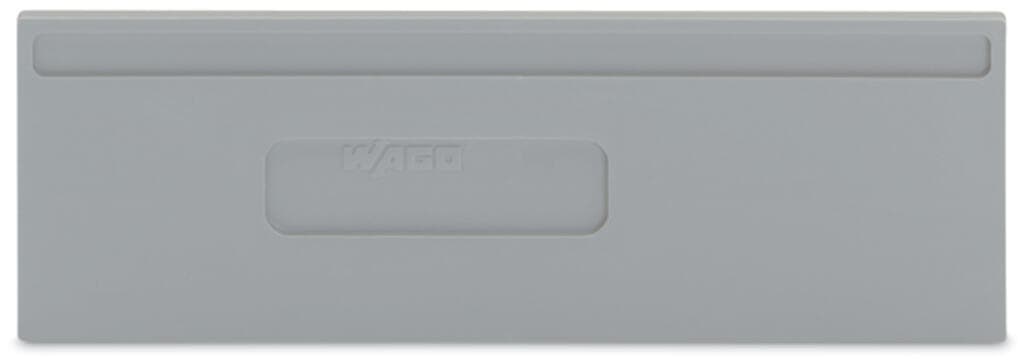

Product Model
279-345
Selling Points
- 1High-Quality Material: Made from polyamide (PA66) for durability and insulation.
- 2RoHS Compliant: Meets environmental product compliance standards.
- 3Precision Dimensions: 2 mm thick, 72.2 mm high, and 25.4 mm deep.
- 4Fire-Resistant: Flammability class V0 per UL94.
- 5Versatile Packaging: Available in boxes of 25 pieces for easy handling.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 2?mm?/ 0.079?inches | Height | 72.2?mm?/ 2.843?inches |
Depth | 25.4?mm?/ 1?inches | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.08MJ | Weight | 2.7g |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-33 |
eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?(25)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4017332296489 |
Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
