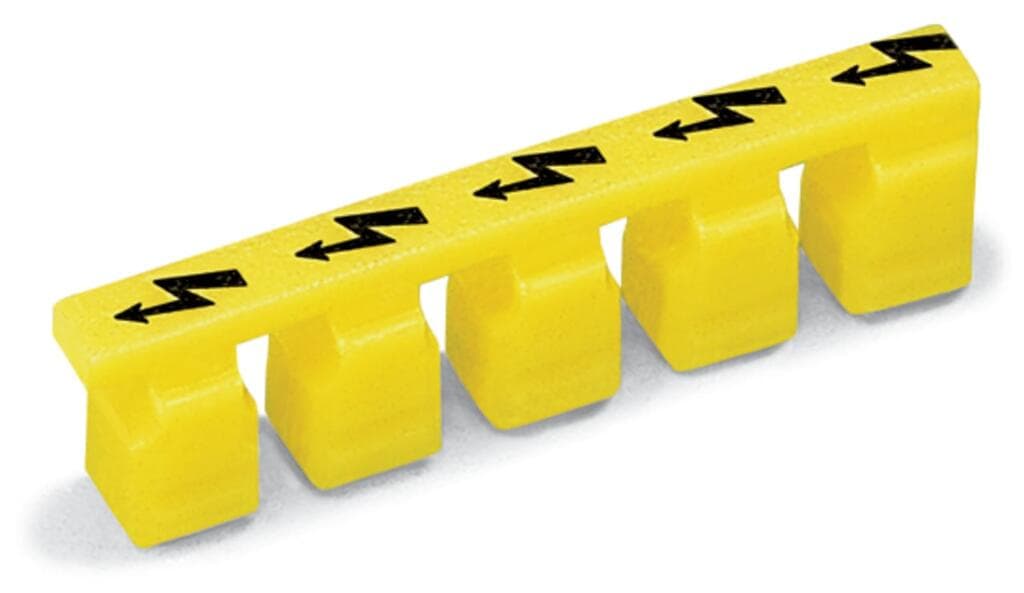

Product Model
279-405
Selling Points
- 1High-Voltage Symbol Indicator: Clearly marks high-voltage areas for safety.
- 2Durable Construction: Made with robust materials for long-lasting use.
- 3Easy Installation: Snap-in design for quick and secure mounting on din rail terminal blocks.
- 4Color-Coded Safety: Yellow color with black high-voltage symbol for clear visibility.
- 5Compliant with Safety Standards: Meets industry standards for electrical safety markings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note (material data) | Information on material specifications can be found here | Color | yellow |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.007MJ |
Weight | 0.2g | Product Group | 1 (Rail Mounted Terminal Blocks) |
eCl@ss 10.0 | 27-14-11-92 | eCl@ss 9.0 | 27-14-11-92 |
ETIM 9.0 | EC002848 | ETIM 8.0 | EC002848 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 100?(25)?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4017332295079 | Customs tariff number | 3926909985 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
