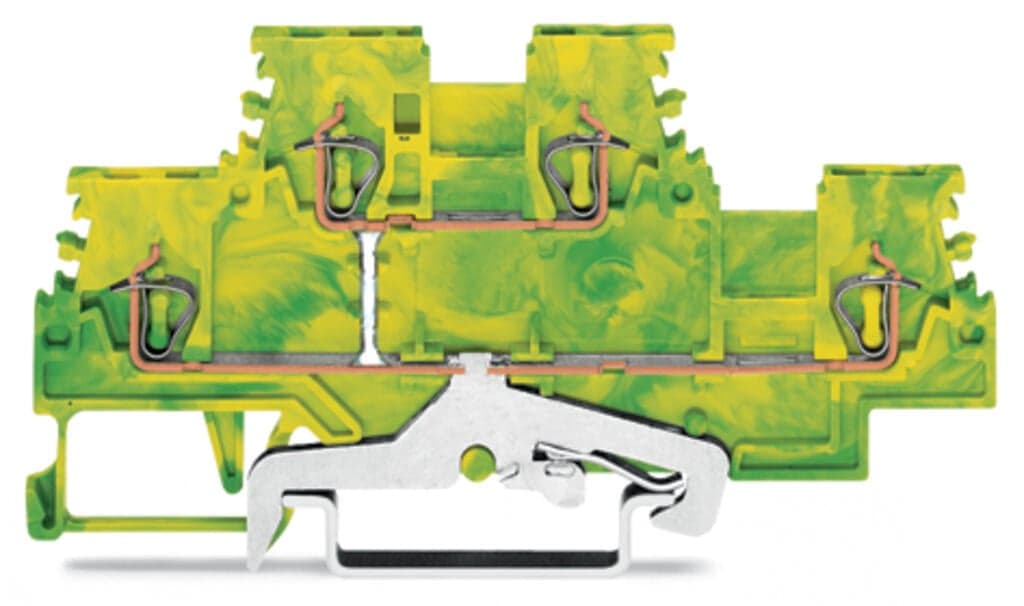

Product Model
279-507
Selling Points
- 1Designed for DIN rail 35 x 15 and 35 x 7.5, ensuring easy integration into your electrical system.
- 2Supports wire sizes AWG 28-16, providing a wide range of applications.
- 3Features CAGE CLAMP technology for secure and reliable connections.
- 4Allows for internal commoning, simplifying wiring configurations.
- 5Easy identification with green-yellow color coding, enhancing safety and efficiency in electrical installations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 4 | Total number of potentials | 1 |
Number of levels | 2 | Width | 4?mm?/ 0.157?inches |
Height | 85?mm?/ 3.346?inches | Depth from upper-edge of DIN-rail | 39?mm?/ 1.535?inches |
Potential Marking | PE | Design | horizontal type |
Mounting type | DIN-35 rail | Marking level | Side marking |
Note (material data) | Information on material specifications can be found here | Color | green-yellow |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.138MJ |
Weight | 11.6g | Processing temperature | -35 … +85?°C |
Continuous operating temperature | -60 … +105?°C | Product Group | 1 (Rail Mounted Terminal Blocks) |
eCl@ss 10.0 | 27-14-11-41 | eCl@ss 9.0 | 27-14-11-41 |
ETIM 9.0 | EC000901 | ETIM 8.0 | EC000901 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 50?pcs |
Packaging type | box | Country of origin | CN |
GTIN | 4050821227267 | Customs tariff number | 8536904000 |
CAS-No. | 7439-92-1 | REACH Candidate List Substance | Lead |
RoHS Compliance Status | Compliant,No Exemption | SCIP notification number (Austria) | a25efc0d-a16d-46f3-a1f0-1cc03e3c4058 |
SCIP notification number (Belgium) | a82d8fcf-4f12-4527-b8f7-fe9b1198d331 | SCIP notification number (Bulgaria) | 669c6c34-455f-4218-bc9d-57329e7d4664 |
SCIP notification number (Czech Republic) | 56bca290-2117-416b-bb6e-270de8bb6cbf | SCIP notification number (Denmark) | d2165be0-7b3a-435b-9a4c-71d4ceb1271c |
SCIP notification number (Finland) | 23526e9f-7db3-44a0-b0fd-fcde70e10185 | SCIP notification number (France) | d6e11359-39e7-4939-9b67-60f4479b0e5c |
SCIP notification number (Germany) | 0cf73974-2ead-42f1-b08c-12d3a188b576 | SCIP notification number (Hungary) | 0c442a85-090c-4306-a921-5d1ee5593239 |
SCIP notification number (Italy) | a5c298e0-45f2-470e-850d-f105de448ca1 | SCIP notification number (Netherlands) | 0adfb67b-1da8-441e-86f1-0e6aa7bc85da |
SCIP notification number (Poland) | 8cad0107-ee11-4e90-b767-53533e316003 | SCIP notification number (Romania) | 5d657377-53d4-46b3-8047-625bf5661b1e |
SCIP notification number (Sweden) | 06748458-901b-4e8a-83a7-d007f5669b2f | Ratings per | IEC/EN 60947-7-2 |
Connection technology | CAGE CLAMP? | Actuation type | Operating tool |
Connectable conductor materials | Copper | Solid conductor | 0.08 … 1.5?mm2?/ 28 … 16?AWG |
Fine-stranded conductor | 0.08 … 1.5?mm2?/ 28 … 16?AWG | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
