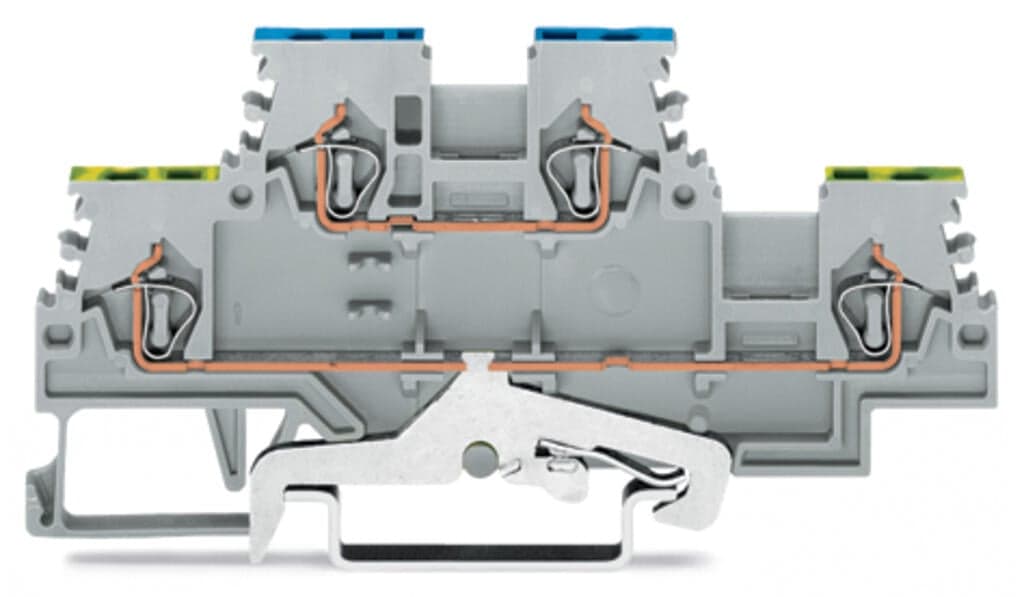

Product Model
279-527
Selling Points
- 1The WAGO 279-527 features CAGE CLAMP technology for secure wire connections.
- 2Suitable for DIN-rail 35 x 15 and 35 x 7.5 dimensions, ensuring easy installation.
- 3Accommodates wire sizes from 0.08mm² to 1.5mm² (28AWG to 16AWG).
- 4Supports up to 18A rated current, making it reliable for various applications.
- 5Includes a protective-earth connection and one feed-through pole for comprehensive wiring needs.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 4 | Total number of potentials | 2 |
Number of levels | 2 | Width | 4?mm?/ 0.157?inches |
Height | 85?mm?/ 3.346?inches | Depth from upper-edge of DIN-rail | 39?mm?/ 1.535?inches |
Potential Marking | PE/L | Design | horizontal type |
Mounting type | DIN-35 rail | Marking level | Side marking |
Note (material data) | Information on material specifications can be found here | Color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.137MJ |
Weight | 11.3g | Processing temperature | -35 … +85?°C |
Continuous operating temperature | -60 … +105?°C | Product Group | 1 (Rail Mounted Terminal Blocks) |
eCl@ss 10.0 | 27-14-11-41 | eCl@ss 9.0 | 27-14-11-41 |
ETIM 9.0 | EC000901 | ETIM 8.0 | EC000901 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 50?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4050821109396 | Customs tariff number | 8536904000 |
CAS-No. | 7439-92-1 | REACH Candidate List Substance | Lead |
RoHS Compliance Status | Compliant,No Exemption | SCIP notification number (Austria) | 6088c7a9-57c5-4c74-bb86-98f3086948d3 |
SCIP notification number (Belgium) | d7a5b85a-1bed-4587-99a7-ffe35bdd560f | SCIP notification number (Bulgaria) | 9cba1d72-0f0d-40fd-8300-06c83f3d9743 |
SCIP notification number (Czech Republic) | 39ec2f6f-eb39-4775-87b3-ed9117dd75b1 | SCIP notification number (Denmark) | dc5899dd-f4ca-455b-a53a-eb38a411988e |
SCIP notification number (Finland) | e406c9d6-76f6-4bd6-9913-2150d83002da | SCIP notification number (France) | f8d61e58-5a75-4eea-9b80-45de38f5a163 |
SCIP notification number (Germany) | 54c521f6-4c2d-41eb-aeb4-441b517058d2 | SCIP notification number (Hungary) | f2fde800-afb4-4f66-b32a-2e1d8dd03ef0 |
SCIP notification number (Italy) | 854c00ff-c1a4-4454-8e15-e29321cf093b | SCIP notification number (Netherlands) | ab440e78-b41a-456d-905f-aa1d25ac9340 |
SCIP notification number (Poland) | 0d96efe9-384a-4b69-b5ec-8058fbd14a15 | SCIP notification number (Romania) | f1210c28-bd32-4034-bda4-803cf85f9b94 |
SCIP notification number (Sweden) | b3b01eaa-f83e-460f-821b-2b32b7b40d25 | Ratings per | IEC/EN 60947-7-1 |
Rated voltage (III / 3) | 500V | Rated impulse voltage (III / 3) | 6kV |
Rated current | 18A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
Approvals per | CSA 22.2 No 158 | Rated voltage UL (Use Group C) | 600V |
Rated current UL (Use Group C) | 10A | Rated voltage CSA (Use Group C) | 600V |
Rated current CSA (Use Group C) | 10A | Power loss, per pole (potential) | 0.593W |
Rated current I<sub>N</sub> for specified power loss | 18A | Resistance value for specified, current-dependent power loss | 0.002Ω |
Connection technology | CAGE CLAMP? | Actuation type | Operating tool |
Connectable conductor materials | Copper | Solid conductor | 0.08 … 1.5?mm2?/ 28 … 16?AWG |
Fine-stranded conductor | 0.08 … 1.5?mm2?/ 28 … 16?AWG | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
