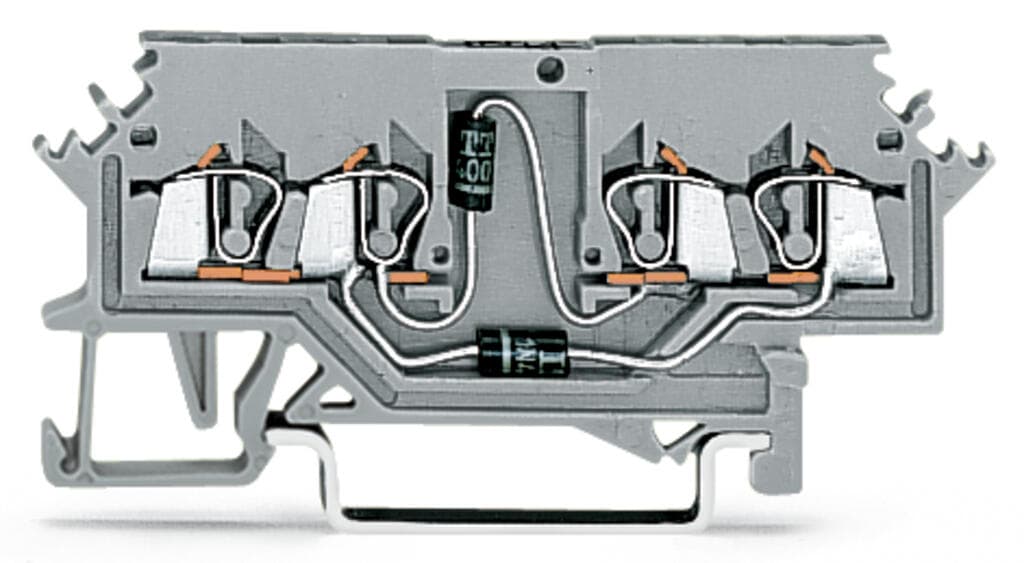

Product Model
279-620/281-408
Selling Points
- 14-Conductor Design for Versatile Applications
- 260V Rating for Lamp Test Circuits
- 3CAGE CLAMP Connection Technology for Secure Wiring
- 4DIN Rail Mounting for Easy Installation
- 5Polyamide Insulation for High-Temperature Resistance (-35 to 85°C)
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 4 | Total number of potentials | 1 |
Number of levels | 1 | Width | 4?mm?/ 0.157?inches |
Height | 68?mm?/ 2.677?inches | Depth from upper-edge of DIN-rail | 27?mm?/ 1.063?inches |
Design | horizontal type | Mounting type | DIN-35 rail |
Marking level | Side marking | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.167MJ | Weight | 6.1g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-27 |
eCl@ss 9.0 | 27-14-11-27 | ETIM 9.0 | EC000903 |
ETIM 8.0 | EC000903 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454193843 |
Customs tariff number | 8536904000 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 7(a) | SCIP notification number (Austria) | 34e5e18c-f73c-4b58-8ae8-afcd061fe65b |
SCIP notification number (Belgium) | fcf3a6c3-3b38-489a-b57f-966aab6a5326 | SCIP notification number (Bulgaria) | 1ca5e3b6-cbbb-402d-9034-e0a50895ed6a |
SCIP notification number (Czech Republic) | a8e81e6c-6868-49d3-b28e-882b62ed4182 | SCIP notification number (Denmark) | b3aa8942-1af0-4fe2-9110-3d019f0e2882 |
SCIP notification number (Finland) | 6c47dc28-336e-44ab-86bf-eaebcf9d98ad | SCIP notification number (France) | acac9b2d-492f-47c3-ad90-f9d36f8c6fd6 |
SCIP notification number (Germany) | 2d44d70a-82e2-43c1-ac13-6188051f1df4 | SCIP notification number (Hungary) | 68be0205-1a57-4523-99c1-eb7b3caee9ee |
SCIP notification number (Italy) | 9b1b13e8-654d-4b7e-9b1f-74d64b4ce231 | SCIP notification number (Netherlands) | 683e30fa-0452-4c13-9fad-6a8efa0fa84c |
SCIP notification number (Poland) | fff0c7dc-4a6a-474b-ae63-85c922ed899d | SCIP notification number (Romania) | d3721215-5ad9-4916-b105-8daddfcab0bc |
SCIP notification number (Sweden) | d02b9f5d-e4c3-4043-8e39-f42eeba208e4 | Ratings per | IEC/EN 60947-7-1 |
Rated current | 0.5A | Nominal voltage | 60V |
Reverse voltage | 1,000V | Connection technology | CAGE CLAMP? |
Actuation type | Operating tool | Connectable conductor materials | Copper |
Solid conductor | 0.08 … 1.5?mm2?/ 28 … 16?AWG | Fine-stranded conductor | 0.08 … 1.5?mm2?/ 28 … 16?AWG |
Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches | Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
