Product Model
279-623/281-410
Selling Points

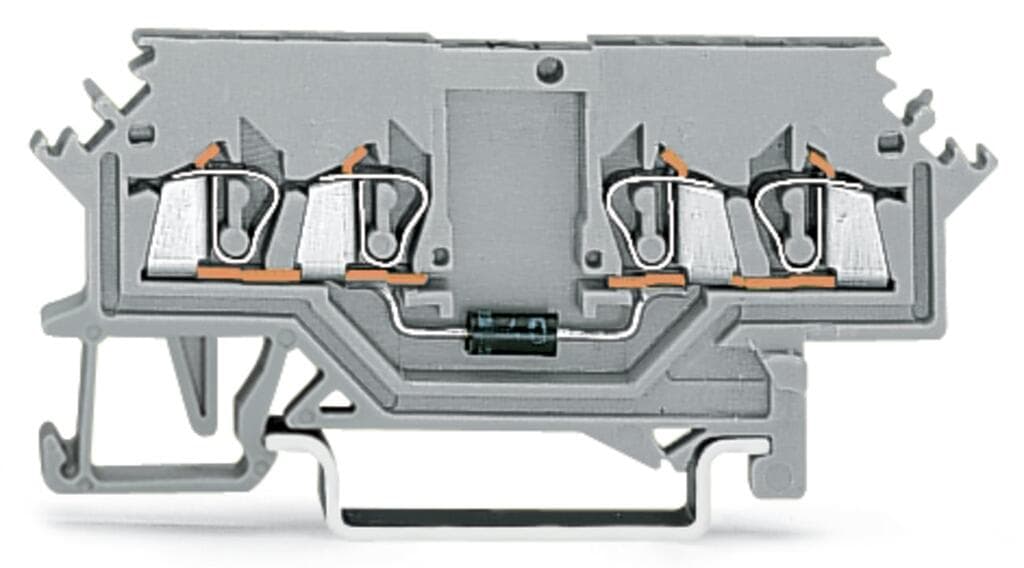

- 14-Conductor Diode Terminal Block: Ideal for industrial applications with 4 connection points.
- 2DIN Rail Mounting: Easily integrates into DIN rail systems for secure and organized wiring.
- 3CAGE CLAMP Connection: Secure wire connection technology ensures reliable performance.
- 4Rated for 250V and 500mA: Supports high voltage and current requirements in industrial settings.
- 5RoHS Compliant: Meets environmental regulations with lead-free construction.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 4 | Total number of potentials | 1 |
Number of levels | 1 | Width | 4?mm?/ 0.157?inches |
Height | 68?mm?/ 2.677?inches | Depth from upper-edge of DIN-rail | 27?mm?/ 1.063?inches |
Design | horizontal type | Mounting type | DIN-35 rail |
Marking level | Side marking | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.116MJ | Weight | 5.7g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-27 |
eCl@ss 9.0 | 27-14-11-27 | ETIM 9.0 | EC000903 |
ETIM 8.0 | EC000903 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?pcs | Packaging type | box |
Country of origin | CN | GTIN | 4050821275374 |
Customs tariff number | 8536904000 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 7(a) | SCIP notification number (Austria) | 1e40d627-35b4-4839-a82a-e0c3012f65df |
SCIP notification number (Belgium) | 6b0d44cd-c150-4f9a-8f35-67d8fe1f236f | SCIP notification number (Bulgaria) | 3b7a78cd-9403-4cab-8e44-eef0459a8b62 |
SCIP notification number (Czech Republic) | 30c8b9eb-61d5-460f-84fc-be67b41e1d71 | SCIP notification number (Denmark) | c5bda71a-75a0-4cc2-9bf6-878ad3d5d159 |
SCIP notification number (Finland) | e6add8c2-5a4b-4c40-9cd6-5d0140c2f8c6 | SCIP notification number (France) | f599c95f-f470-4eb4-86f5-62580af2abce |
SCIP notification number (Germany) | 7293d160-f8d8-4b92-92ca-bb3e7afacfb4 | SCIP notification number (Hungary) | 25a292d1-c78a-4700-b7ee-4e4ef9fb1049 |
SCIP notification number (Italy) | c347c72c-f29c-4557-b850-425742b180ab | SCIP notification number (Netherlands) | 2ae4f931-9f2c-4e1a-80b5-21b5c4aae933 |
SCIP notification number (Poland) | a0d9d3cd-251a-438c-aef9-8253302e0922 | SCIP notification number (Romania) | 5553c3a6-6175-4921-bb48-cabc2b3f49bc |
SCIP notification number (Sweden) | 54577095-e518-454d-9cc5-5d7d1236f786 | Ratings per | IEC/EN 60947-7-1 |
Rated current | 0.5A | Nominal voltage | 250V |
Reverse voltage | 1,000V | Connection technology | CAGE CLAMP? |
Actuation type | Operating tool | Connectable conductor materials | Copper |
Solid conductor | 0.08 … 1.5?mm2?/ 28 … 16?AWG | Fine-stranded conductor | 0.08 … 1.5?mm2?/ 28 … 16?AWG |
Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches | Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
