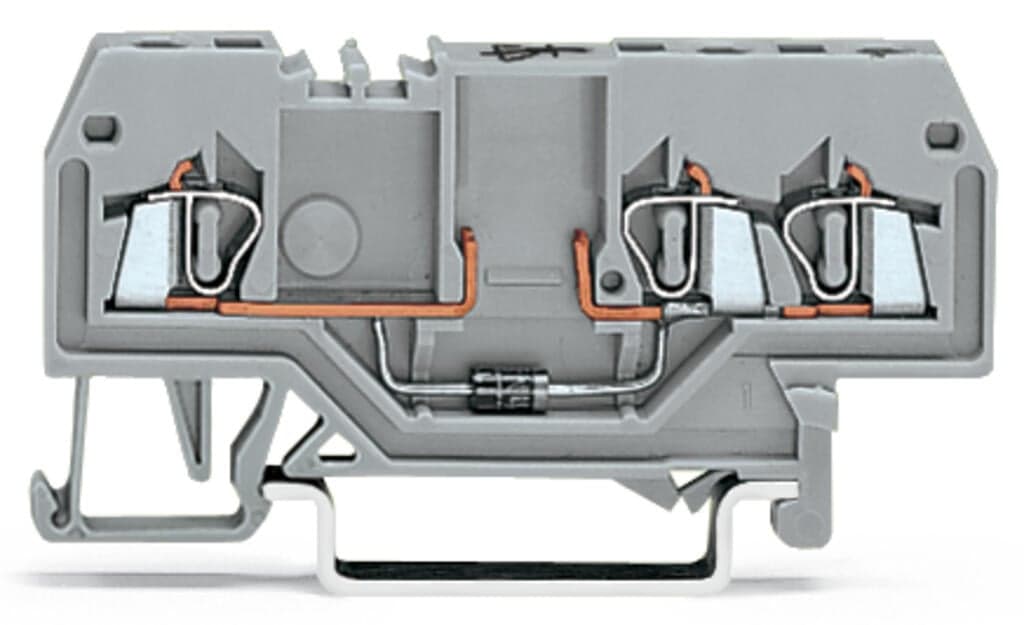

Product Model
279-673/281-410
Selling Points
- 1Efficient DIN-Rail Solution: Designed for DIN-rail 35 x 15 and 35 x 7.5 mm, ensuring easy installation in various industrial settings.
- 2Secure Connections: Equipped with CAGE CLAMP technology, providing reliable and shock-resistant wire termination.
- 3Versatile Wiring: Supports 3-conductor wiring with a diode 1N4007, enhancing electrical safety and functionality.
- 4High-Temperature Resistance: Operates within a continuous temperature range of -60°C to +105°C, suitable for demanding environments.
- 5Durable Construction: Made from high-quality polyamide (PA66) for insulation and robustness, ensuring long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 3 | Total number of potentials | 1 |
Number of levels | 1 | Width | 4?mm?/ 0.157?inches |
Height | 62.5?mm?/ 2.461?inches | Depth from upper-edge of DIN-rail | 27?mm?/ 1.063?inches |
Design | horizontal type | Mounting type | DIN-35 rail |
Marking level | Center marking | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.119MJ | Weight | 5.7g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-27 |
eCl@ss 9.0 | 27-14-11-27 | ETIM 9.0 | EC000903 |
ETIM 8.0 | EC000903 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454193997 |
Customs tariff number | 8536904000 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 7(a) | SCIP notification number (Austria) | c169c407-010f-40d4-b8d9-0c33cee0672d |
SCIP notification number (Belgium) | 86236cd3-fb00-452e-b268-90bb21ae866f | SCIP notification number (Bulgaria) | 81ede544-2c98-4db1-937d-7fd406e8c633 |
SCIP notification number (Czech Republic) | 985365f2-9078-42e7-b260-abe120065fe4 | SCIP notification number (Denmark) | 509b33f4-0491-4f8f-8a5f-32d44b4dc8ae |
SCIP notification number (Finland) | 6a74906a-5806-454c-bd88-130eb84c33fe | SCIP notification number (France) | eb5c0663-3205-457a-9f77-d772496eaa31 |
SCIP notification number (Germany) | fdaf7a03-ef3c-4d7e-b20a-e889e09aac7e | SCIP notification number (Hungary) | 33a2ac0f-1bab-471b-8707-692fa6ce6e0a |
SCIP notification number (Italy) | c28c04c1-7a42-4f7f-8af4-150642955fc9 | SCIP notification number (Netherlands) | 2653b342-288b-44b6-a408-9028a7160140 |
SCIP notification number (Poland) | 006f2126-03f2-4644-9fe1-73d6ceb0cb2f | SCIP notification number (Romania) | 599d94d2-ab99-492e-845d-3a43e6c53798 |
SCIP notification number (Sweden) | cde2fb2f-a9fa-436f-8ac2-ffb59deba777 | Ratings per | IEC/EN 60947-7-1 |
Rated current | 0.5A | Nominal voltage | 250V |
Reverse voltage | 1,000V | Connection technology | CAGE CLAMP? |
Actuation type | Operating tool | Connectable conductor materials | Copper |
Solid conductor | 0.08 … 1.5?mm2?/ 28 … 16?AWG | Fine-stranded conductor | 0.08 … 1.5?mm2?/ 28 … 16?AWG |
Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches | Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
