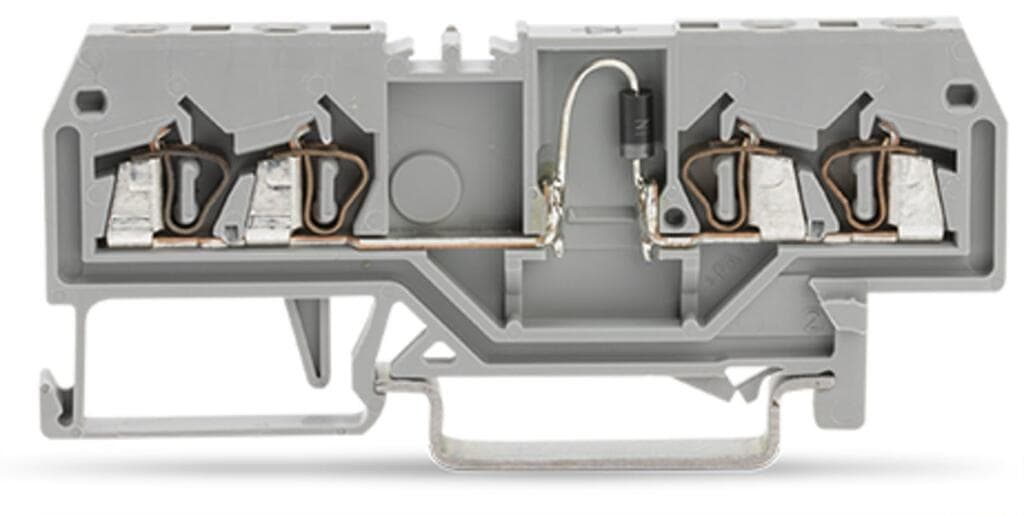

Product Model
279-815/281-410
Selling Points
- 1Made from high-quality polyamide (PA66) for excellent insulation and durability.
- 2Compatible with DIN-rail 35 x 15 and 35 x 7.5, ensuring versatile mounting options.
- 3Utilizes CAGE CLAMP technology for secure and efficient conductor clamping.
- 4Includes a 1N4007 diode for added safety and protection against voltage spikes.
- 5Designed with a simple and intuitive operating tool for easy installation and maintenance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 4 | Total number of potentials | 1 |
Number of levels | 1 | Width | 4?mm?/ 0.157?inches |
Height | 73?mm?/ 2.874?inches | Depth from upper-edge of DIN-rail | 27?mm?/ 1.063?inches |
Design | horizontal type | Mounting type | DIN-35 rail |
Marking level | Center marking | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.132MJ | Weight | 6.7g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-27 |
eCl@ss 9.0 | 27-14-11-27 | ETIM 9.0 | EC000903 |
ETIM 8.0 | EC000903 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?pcs | Packaging type | box |
Country of origin | CN | GTIN | 4050821275398 |
Customs tariff number | 8536904000 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 7(a) | SCIP notification number (Austria) | dfd16757-0927-42aa-bf37-f8a3d28a174c |
SCIP notification number (Belgium) | b86ed88c-9f30-4866-b636-812cdb3b21d4 | SCIP notification number (Bulgaria) | 106acffa-9249-4ef7-95c5-a5750c5b403b |
SCIP notification number (Czech Republic) | acbb0059-4c7a-4b26-9fb7-cd7e3ce83e26 | SCIP notification number (Denmark) | 1c33dd35-e576-4562-ae2a-6e621cb6b7ef |
SCIP notification number (Finland) | e62ecaff-fa5e-4175-8994-59059ab6928a | SCIP notification number (France) | e0caf70a-27d4-479e-bc64-77ae2cc48303 |
SCIP notification number (Germany) | d0ef494d-a09d-4b94-a02b-7a98ebb159ad | SCIP notification number (Hungary) | fe0ded5e-40e4-45f7-98b9-cfce6fc2a6ac |
SCIP notification number (Italy) | 7d2fde1e-e7c0-4fa4-864d-5097cad7847a | SCIP notification number (Netherlands) | 3b8cf556-5112-4c0c-bc95-874590ef0c9e |
SCIP notification number (Poland) | feb9f24c-8dad-4fb8-a429-d8393d19975a | SCIP notification number (Romania) | 97417ae2-8050-4123-a657-9c9370c3b5c6 |
SCIP notification number (Sweden) | 2b42a83f-5ab6-451a-87e0-a2e11cebc874 | Ratings per | IEC/EN 60947-7-1 |
Rated current | 0.5A | Nominal voltage | 250V |
Reverse voltage | 1,000V | Connection technology | CAGE CLAMP? |
Actuation type | Operating tool | Connectable conductor materials | Copper |
Solid conductor | 0.08 … 1.5?mm2?/ 28 … 16?AWG | Fine-stranded conductor | 0.08 … 1.5?mm2?/ 28 … 16?AWG |
Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches | Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
