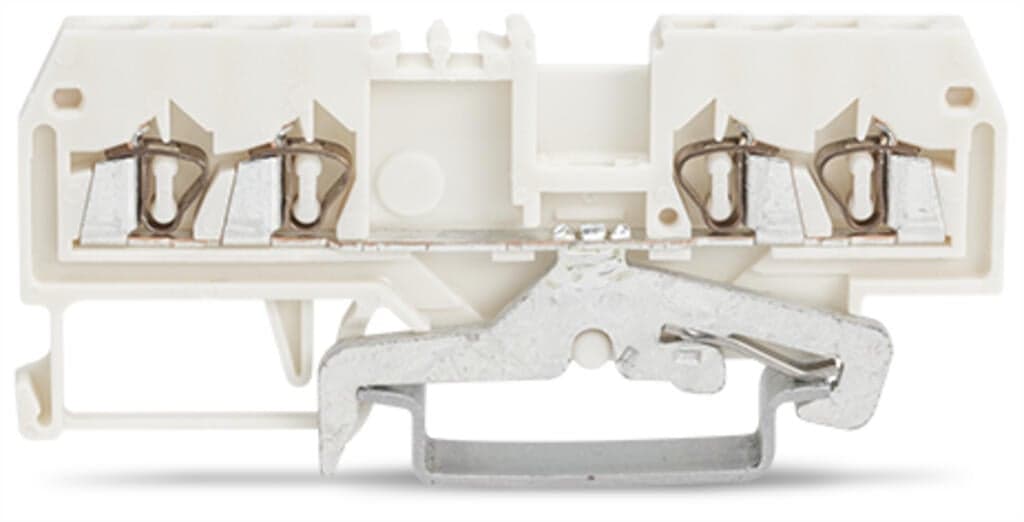

Product Model
279-838
Selling Points
- 1The CAGE CLAMP connection ensures a tight grip on conductors without damaging them, eliminating the risk of loose connections.
- 2Designed to withstand vibrations, making it ideal for use in ships, railways, and other applications where mechanical stress is high.
- 3Automatic clamping force adjustment to the conductor cross-section simplifies installation and reduces maintenance needs.
- 4Built to last with a flat clamping face and uniquely curved current bar that compensates for conductor deformation or movement.
- 5Suitable for a wide range of applications including building installations, power generation, and distribution systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 4 | Total number of potentials | 1 |
Number of levels | 1 | Width | 4?mm?/ 0.157?inches |
Height | 73?mm?/ 2.874?inches | Depth from upper-edge of DIN-rail | 27?mm?/ 1.063?inches |
Design | horizontal type | Mounting type | DIN-35 rail |
Marking level | Center marking | Note (material data) | Information on material specifications can be found here |
Color | white | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.208MJ | Weight | 13.4g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
eCl@ss 10.0 | 27-14-11-41 | eCl@ss 9.0 | 27-14-11-20 |
ETIM 9.0 | EC000901 | ETIM 8.0 | EC000901 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 100?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4045454084462 | Customs tariff number | 8536904000 |
CAS-No. | 7439-92-1 | REACH Candidate List Substance | Lead |
RoHS Compliance Status | Compliant,No Exemption | SCIP notification number (Austria) | 6110974f-1cda-4e71-83be-5a02782a6b6d |
SCIP notification number (Belgium) | 3a65a4a2-f245-4494-a883-90859f949125 | SCIP notification number (Bulgaria) | b6cbc722-3506-414a-9e1d-a46495eb95d2 |
SCIP notification number (Czech Republic) | 2a3465b5-9445-4ca6-bf95-120ef1e3a58e | SCIP notification number (Denmark) | 544c97ea-b8b7-4add-aa67-0e37dbaef17c |
SCIP notification number (Finland) | 9d4f9a00-9e68-4de7-8ccc-3afe56556283 | SCIP notification number (France) | 4a548f75-4d6c-4f61-a75d-f8a997eb4685 |
SCIP notification number (Germany) | 06cb5bef-1b97-48da-90b2-27c66d64417b | SCIP notification number (Hungary) | 486d66da-aab8-4884-92bc-2d0d48a8d60d |
SCIP notification number (Italy) | 0f690e6d-ab28-4309-b98b-a1be3dc85e8f | SCIP notification number (Netherlands) | 8d6dec61-680a-42c5-8bfa-00a1d8592aec |
SCIP notification number (Poland) | 7630ee24-1877-4a00-9d6e-edadfb6edbe9 | SCIP notification number (Romania) | dfecddbb-f4a3-4619-a970-a0bd29c1e1dc |
SCIP notification number (Sweden) | e39374f2-3ddf-4ef6-84c9-9c37974c1f01 | Ratings per | IEC/EN 60947-7-2 |
Connection technology | CAGE CLAMP? | Actuation type | Operating tool |
Connectable conductor materials | Copper | Solid conductor | 0.08 … 1.5?mm2?/ 28 … 16?AWG |
Fine-stranded conductor | 0.08 … 1.5?mm2?/ 28 … 16?AWG | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
