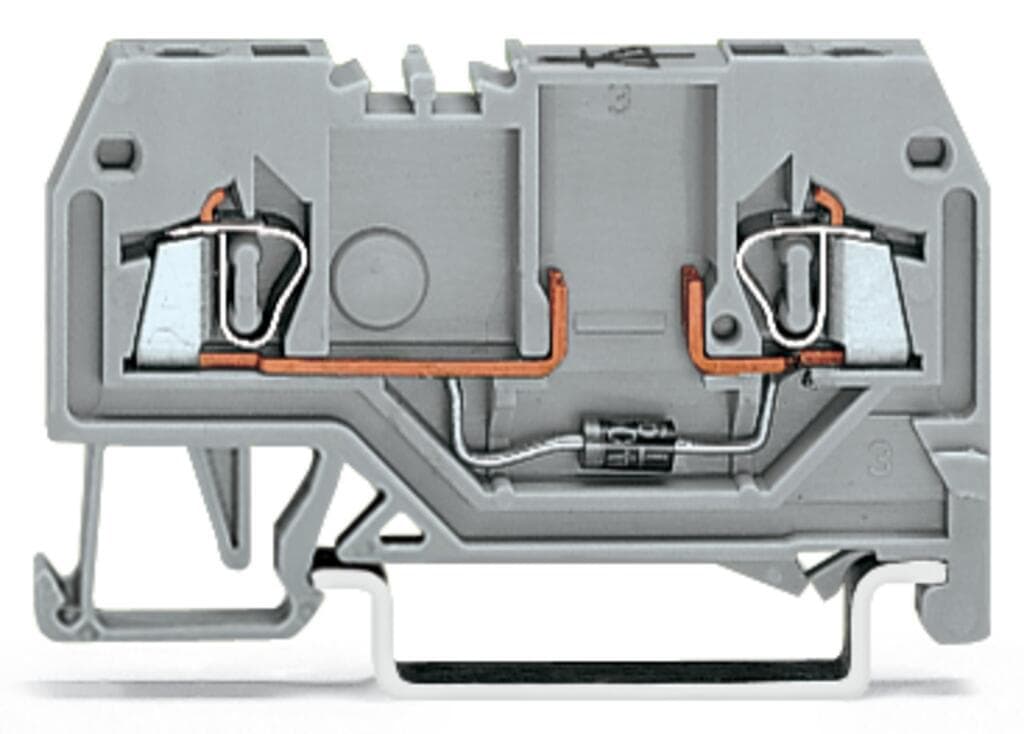

Product Model
279-915/281-410
Selling Points
- 1CAGE CLAMP Technology: Secure and reliable connection system.
- 2DIN-Rail Mounting: Easy installation on 35 x 15 or 35 x 7.5 mm DIN rails.
- 32-Conductor Design: Ideal for applications requiring two wires.
- 4Rated Current: 0.5A: Suitable for a wide range of electrical applications.
- 5Gray Polyamide Housing: Durable and insulated for safety and longevity.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 2 | Total number of potentials | 1 |
Number of levels | 1 | Width | 4?mm?/ 0.157?inches |
Height | 52?mm?/ 2.047?inches | Depth from upper-edge of DIN-rail | 27?mm?/ 1.063?inches |
Design | horizontal type | Mounting type | DIN-35 rail |
Marking level | Center marking | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.099MJ | Weight | 4.7g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-27 |
eCl@ss 9.0 | 27-14-11-27 | ETIM 9.0 | EC000903 |
ETIM 8.0 | EC000903 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4044918525459 |
Customs tariff number | 8536904000 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 7(a) | SCIP notification number (Austria) | 90e5cd3b-1e74-46b6-8a0a-f58f70991418 |
SCIP notification number (Belgium) | 287b0652-37c5-4d5c-a092-9a2fb7b662a4 | SCIP notification number (Bulgaria) | 64a845bd-1e1c-4feb-8168-d94862601ce5 |
SCIP notification number (Czech Republic) | ffb9684c-abea-47b8-8794-47a63fc8d50f | SCIP notification number (Denmark) | 3bd220ff-0e24-445d-9c72-015825666e44 |
SCIP notification number (Finland) | b773621c-9d14-4d06-a566-4eaf18574952 | SCIP notification number (France) | 3a56e79a-88f0-4ed8-9768-78cccff01834 |
SCIP notification number (Germany) | 6d6a51c1-0e04-43a4-a66e-f98375450b41 | SCIP notification number (Hungary) | 9db3c237-b2f9-4072-9aa6-42dae3e8838c |
SCIP notification number (Italy) | acdb363f-a1f5-418f-af93-f88e29256a10 | SCIP notification number (Netherlands) | 64069b96-e077-4099-a8b3-de66ef278a59 |
SCIP notification number (Poland) | 9b35bb18-7051-4274-8b9f-7bb287af9f7f | SCIP notification number (Romania) | 9c904dc5-25c6-4b61-a727-47e13d568fd9 |
SCIP notification number (Sweden) | 4a270667-7970-4574-8e74-c604f6503062 | Ratings per | IEC/EN 60947-7-1 |
Rated current | 0.5A | Nominal voltage | 250V |
Reverse voltage | 1,000V | Connection technology | CAGE CLAMP? |
Actuation type | Operating tool | Connectable conductor materials | Copper |
Solid conductor | 0.08 … 1.5?mm2?/ 28 … 16?AWG | Fine-stranded conductor | 0.08 … 1.5?mm2?/ 28 … 16?AWG |
Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches | Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
