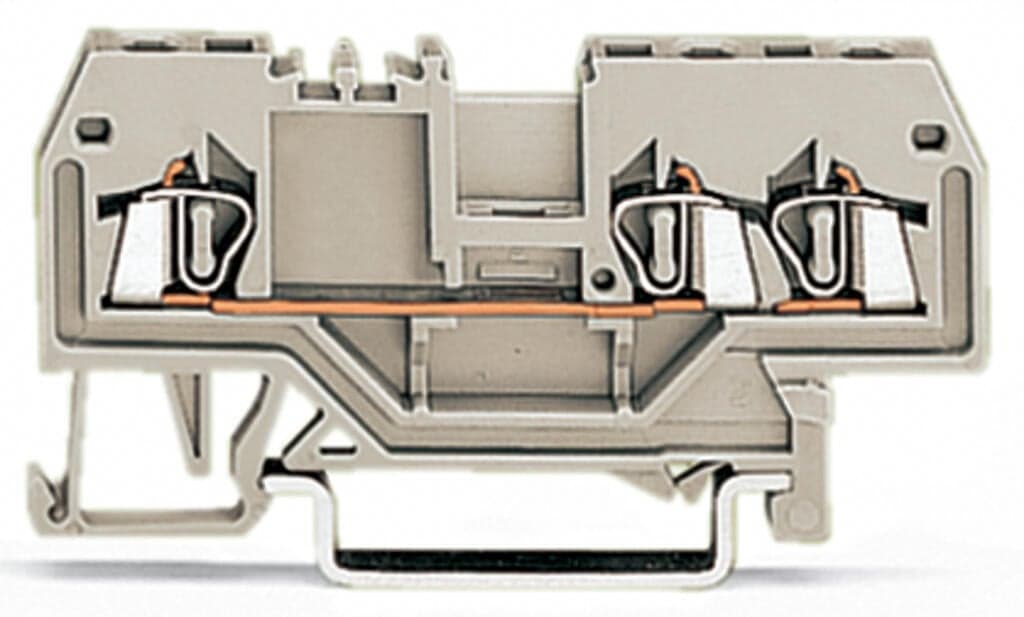

Product Model
279-993
Selling Points
- 1Ex e II Compliant: Suitable for hazardous environments.
- 2Front-Entry Wiring: Easy and secure connection method.
- 3Compact Design: 4mm width for space-efficient installations.
- 4Rugged Construction: Built to withstand harsh conditions.
- 5Versatile Connectivity: Supports wire gauges from 28 to 16 AWG.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 3 | Total number of potentials | 1 |
Number of levels | 1 | Width | 4?mm?/ 0.157?inches |
Height | 62.5?mm?/ 2.461?inches | Depth from upper-edge of DIN-rail | 27?mm?/ 1.063?inches |
Mounting type | DIN-35 rail | Marking level | Center marking |
Note (material data) | Information on material specifications can be found here | Color | light gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.104MJ |
Weight | 5.4g | Processing temperature | -35 … +85?°C |
Continuous operating temperature | -60 … +105?°C | eCl@ss 10.0 | 27-14-11-20 |
eCl@ss 9.0 | 27-14-11-20 | ETIM 9.0 | EC000897 |
ETIM 8.0 | EC000897 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4044918650588 |
Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | IEC/EN 60947-7-1 | Approvals per | CSA 22.2 No 158 |
Rated voltage UL (Use Group C) | 600V | Rated current UL (Use Group C) | 10A |
Rated voltage CSA (Use Group C) | 600V | Rated current CSA (Use Group C) | 10A |
Reference hazardous areas | See application instructions in section “Knowledge andDownloads – Documentation – Additional Information: Technical Section; Technical Explications” | Rated voltage EN (Ex e II) | 550V |
Rated current (Ex e II) | 15A | Power loss, per pole (potential) | 0.412W |
Rated current I<sub>N</sub> for specified power loss | 15A | Resistance value for specified, current-dependent power loss | 0.002Ω |
Connection technology | CAGE CLAMP? | Actuation type | Operating tool |
Connectable conductor materials | Copper | Solid conductor | 0.08 … 1.5?mm2?/ 28 … 16?AWG |
Fine-stranded conductor | 0.08 … 1.5?mm2?/ 28 … 16?AWG | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
