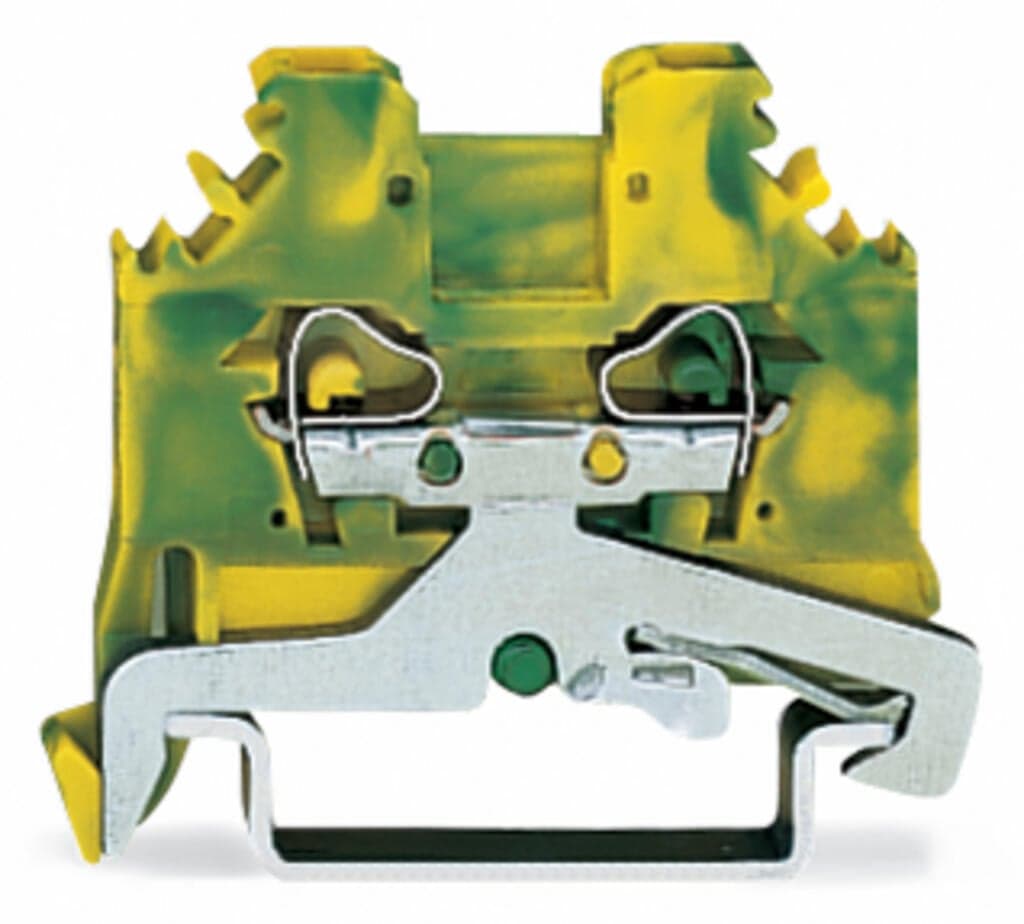

Product Model
280-107
Selling Points
- 1Built with high-quality polyamide (PA66) insulation for long-lasting performance.
- 2Side-entry wiring and cage clamp connection method simplify setup and maintenance.
- 3Accepts wire sizes from 28 to 12 AWG, making it suitable for various applications.
- 4Meets UL94V-0 flammability rating and is RoHS compliant for environmental safety.
- 5Ideal for terminating aluminum conductors with WAGO Alu-Plus Contact Paste, ensuring secure connections.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 2 | Total number of potentials | 1 |
Number of levels | 1 | Width | 5?mm?/ 0.197?inches |
Height | 45?mm?/ 1.772?inches | Depth from upper-edge of DIN-rail | 30.5?mm?/ 1.201?inches |
Design | horizontal type | Mounting type | DIN-35 rail |
Marking level | Side marking | Note (material data) | Information on material specifications can be found here |
Color | green-yellow | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.074MJ | Weight | 8.1g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-41 |
eCl@ss 9.0 | 27-14-11-41 | ETIM 9.0 | EC000901 |
ETIM 8.0 | EC000901 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?pcs | Packaging type | box |
Country of origin | IN | GTIN | 4055143309325 |
Customs tariff number | 8536904000 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | Lead | RoHS Compliance Status | Compliant,No Exemption |
SCIP notification number (Austria) | 7da11b99-f1cc-4819-9be7-cba479dd66c6 | SCIP notification number (Belgium) | c3a5e8a5-75d5-4df5-acd1-958d34858fe0 |
SCIP notification number (Bulgaria) | efdab797-9c48-4e4f-8a23-c056cc0aebc6 | SCIP notification number (Czech Republic) | 4c32f7af-e18e-4e6c-a561-27952523e0f4 |
SCIP notification number (Denmark) | f22f45c6-7edc-4ac8-9d90-b7264103a71f | SCIP notification number (Finland) | b80f4ddc-27bf-42a0-90c1-14f21a985e32 |
SCIP notification number (France) | 51008231-8c89-466a-91ba-64b531c7636a | SCIP notification number (Germany) | 76cecf8c-60dd-4f13-99a7-a357315ae197 |
SCIP notification number (Hungary) | 3a3dabfb-7df0-4cd5-8d7a-f088d84762ed | SCIP notification number (Italy) | 9ec8fb37-f3b8-485e-9bd1-2d28ae3ca47e |
SCIP notification number (Netherlands) | d69a02a3-6fe9-4a96-9576-dc0212e1fe2a | SCIP notification number (Poland) | 7bc7fc4d-2fe5-4586-b073-4baacef46fa5 |
SCIP notification number (Romania) | 902d0e87-506e-4422-b756-22b29c42e787 | SCIP notification number (Sweden) | 5ca71e44-39f4-465e-b72c-ad74c3789cca |
Ratings per | IEC/EN 60947-7-2 | Connection technology | CAGE CLAMP? |
Actuation type | Operating tool | Connectable conductor materials | Copper |
Connectable conductor materials (note) | Terminating Aluminum ConductorsWAGO Spring-Clamp Terminal Blocks are suitable for solid aluminum conductors up to 4 mm2/12 AWG if WAGO “Alu-Plus” Contact Paste249-130is used for termination.“Alu-Plus” Contact Paste Advantages:Automatically destroys the oxide film during clamping.Prevents fresh oxidation at the clamping point.Prevents electrolytic corrosion between aluminum and copper conductors (in the same terminal block).Provides long-term protection against corrosion.Using terminal blocks with CAGE CLAMP?Spring Pressure Connection Technology,aluminum conductors must first be cleaned with a bladeand then immediately inserted into the clamping units filled with “Alu-Plus” contact paste.It is also possible to apply WAGO “Alu-Plus”additionallyon the whole surface of the aluminum conductor before termination.Please note that the nominal currents must be adapted to the reduced conductivity of the aluminum conductors::2.5 mm2 = 16 A4 mm2 = 22 A | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Note (conductor cross-section) | 12 AWG: THHN, THWN |
Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches | Wiring direction | Side-entry wiring |
Specifications may be subject to change without notice
