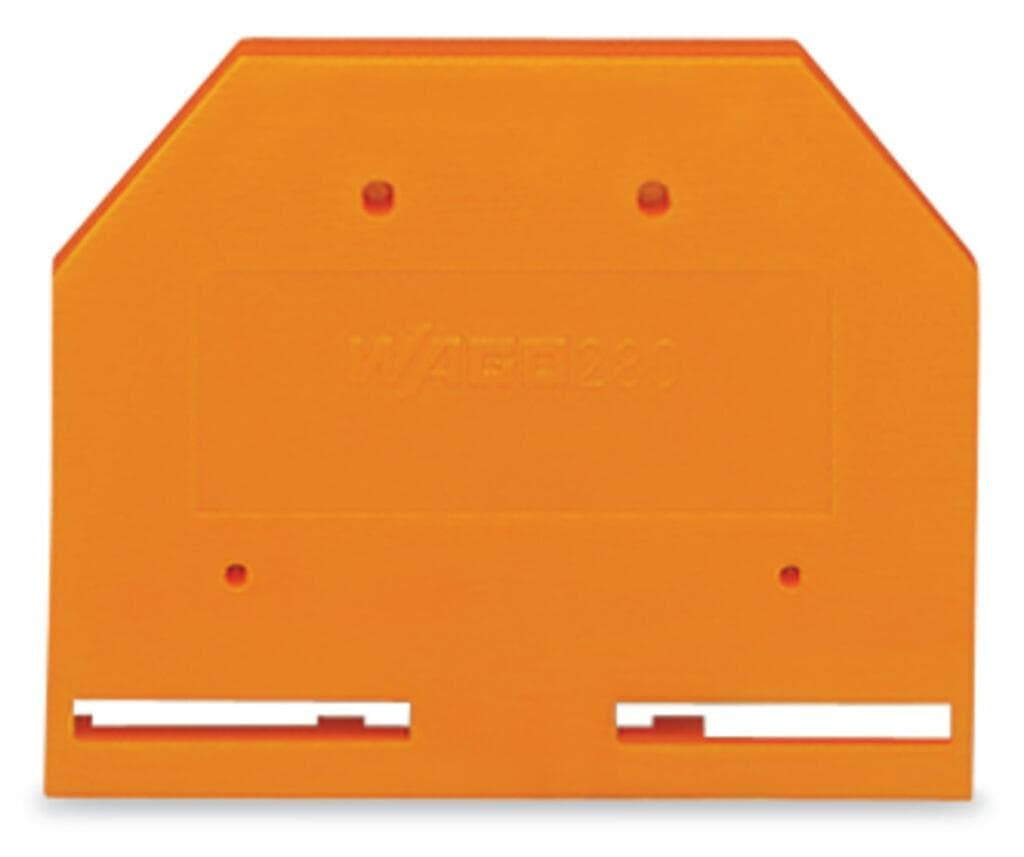

Product Model
280-302
Selling Points
- 1Designed to handle high currents with robust clamping mechanisms.
- 2Made from thick, durable materials for long-lasting performance.
- 3Simple and secure installation process with minimal wire preparation.
- 4Suitable for various electrical applications, including automation systems.
- 5Ensures secure electrical connections, reducing the risk of loose connections and electrical hazards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 2.5?mm?/ 0.098?inches | Height | 38?mm?/ 1.496?inches |
Depth | 30?mm?/ 1.181?inches | Note (material data) | Information on material specifications can be found here |
Color | orange | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.057MJ | Weight | 1.9g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-33 |
eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?(25)?pcs | Packaging type | box |
Country of origin | CN | GTIN | 4017332292634 |
Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
