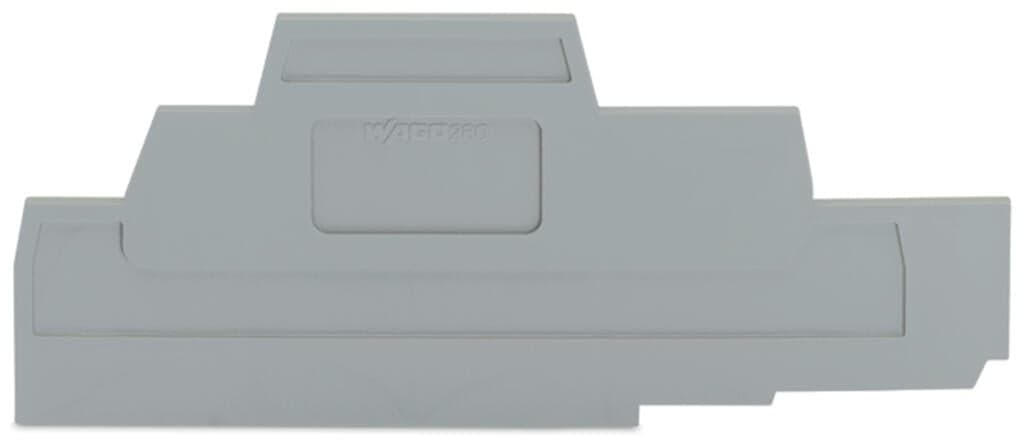

Product Model
280-305
Selling Points
- 1Made from high-quality Polyamide (PA66) for long-lasting performance.
- 2Designed for seamless integration with WAGO 280 and 780 Series rail-mounted terminal blocks.
- 3Meets 0.196 MJ Fire Load specifications for reliable operation in harsh environments.
- 4Measures 4.449 in H x 0.098 in W x 1.969 in D for efficient use in tight spaces.
- 5RoHS compliant, ensuring environmental safety and regulatory compliance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 2.5?mm?/ 0.098?inches | Height | 113?mm?/ 4.449?inches |
Depth | 50?mm?/ 1.969?inches | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.253MJ | Weight | 6g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-33 |
eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 50?(25)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4017332150163 |
Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
