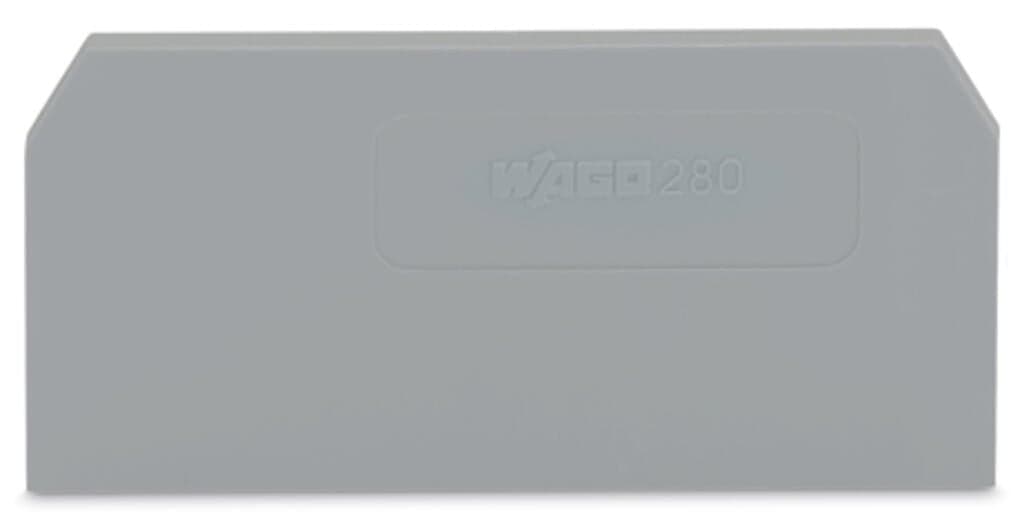

Product Model
280-308
Selling Points
- 1High-Quality Construction: Made with 2.5 mm thick material for durability.
- 2Industrial Compatibility: Designed for use with WAGO's 280 Series Rail Mounted Terminal Blocks.
- 3Enhanced Safety: Meets 0.072 MJ Fire Load specifications for safety.
- 4Compact Design: Measures 1.1 in H x 0.098 in W x 2.07 in D for easy installation.
- 5RoHS Compliant: Ensures environmental sustainability and compliance with regulations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 2.5?mm?/ 0.098?inches | Height | 52.5?mm?/ 2.067?inches |
Depth | 28?mm?/ 1.102?inches | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.072MJ | Weight | 2.4g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-33 |
eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?(25)?pcs | Packaging type | box |
Country of origin | CN | GTIN | 4017332292252 |
Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
