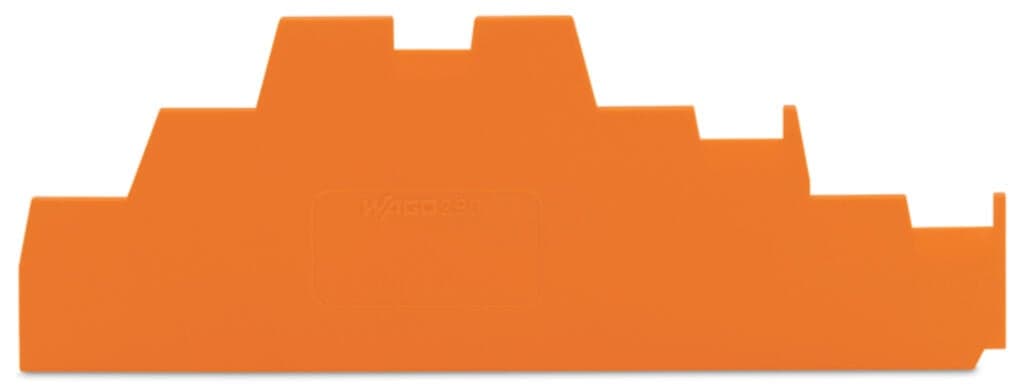

Product Model
280-339
Selling Points
- 1Durable and reliable terminal block solution.
- 2Ideal for rail and chassis mounting applications.
- 31.1 mm thick for added strength and stability.
- 4Available in orange color for easy identification.
- 5Compatible with WAGO's extensive range of terminal blocks.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 1.1?mm?/ 0.043?inches | Height | 113?mm?/ 4.449?inches |
Depth | 50?mm?/ 1.969?inches | Note (material data) | Information on material specifications can be found here |
Color | orange | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.13MJ | Weight | 4.3g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-33 |
eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 50?(25)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4017332262484 |
Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
