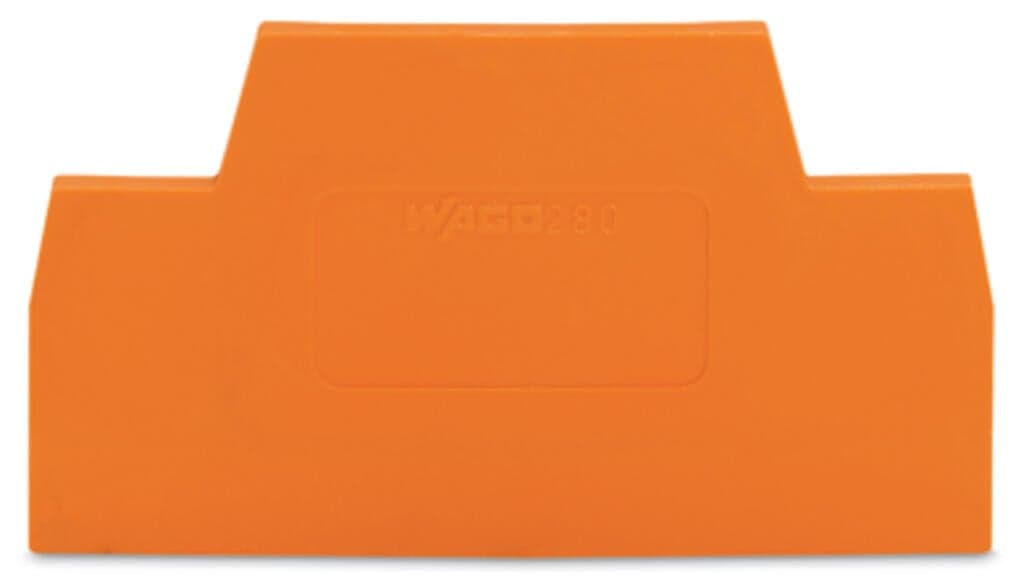

Product Model
280-341
Selling Points
- 1Made from high-quality materials, the end and intermediate plate is built to withstand demanding industrial environments.
- 2Designed for straightforward installation, reducing setup time and ensuring quick integration into your electrical system.
- 3Provides a secure connection point, minimizing the risk of electrical faults and ensuring reliable operation.
- 4Suitable for various applications, including automation systems and industrial control panels.
- 5Available in different thicknesses and colors to meet specific project requirements.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 2.5?mm?/ 0.098?inches | Height | 64?mm?/ 2.52?inches |
Depth | 38.5?mm?/ 1.516?inches | Note (material data) | Information on material specifications can be found here |
Color | orange | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.106MJ | Weight | 3.5g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-33 |
eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?(25)?pcs | Packaging type | box |
Country of origin | CN | GTIN | 4017332150484 |
Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
