Product Model
280-342
Selling Points

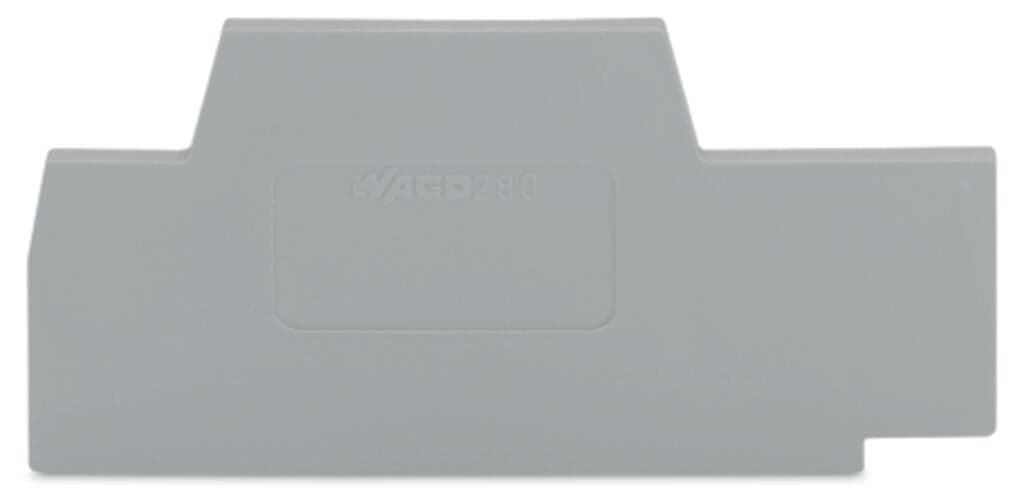

- 1Gray Color: The WAGO 280-342 end and intermediate plate is available in a durable gray color.
- 2RoHS Compliant: Meets RoHS compliance standards, ensuring environmental safety.
- 32.5 mm Thickness: Made with a robust 2.5 mm thickness for durability.
- 4Compatible with 280 Series: Designed for use with WAGO's 280 series rail-mounted terminal blocks.
- 5Easy Installation: Simple to install, enhancing the efficiency of your electrical systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 2.5?mm?/ 0.098?inches | Height | 74?mm?/ 2.913?inches |
Depth | 38.5?mm?/ 1.516?inches | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.112MJ | Weight | 3.7g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-33 |
eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?(25)?pcs | Packaging type | box |
Country of origin | CN | GTIN | 4017332297738 |
Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
