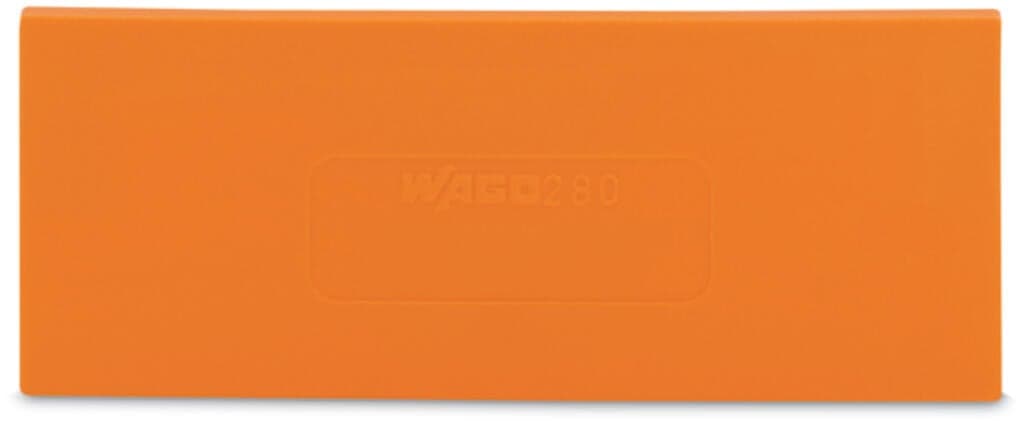

Product Model
280-346
Selling Points
- 12 mm thick, oversized separator plate for enhanced durability.
- 2Designed for easy integration into electrical systems with a gray color.
- 3Orange-colored, suitable for harsh environments with a width of 2 mm.
- 4Compatible with WAGO's 280 series modular components.
- 5Meets ROHS standards, ensuring environmental safety and compliance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 2?mm?/ 0.079?inches | Height | 63.8?mm?/ 2.512?inches |
Depth | 26.5?mm?/ 1.043?inches | Note (material data) | Information on material specifications can be found here |
Color | orange | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.076MJ | Weight | 2.5g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-33 |
eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?(25)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4017332150521 |
Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
