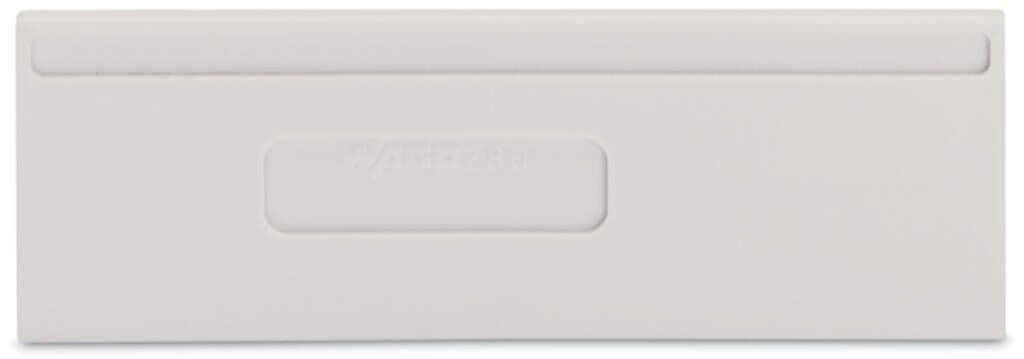

Product Model
280-353
Selling Points
- 12mm Thick and Oversized Design: Perfect for DIN rail terminal blocks.
- 2Light Gray Color: Easy to identify and integrate into your system.
- 3Polyamide Material (PA66): High-quality insulation material with excellent mechanical properties.
- 4V0 Fire Rating: Meets stringent fire safety standards according to UL94.
- 5RoHS Compliant: Environmentally friendly, compliant with EU's Restriction of Hazardous Substances directive.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 2?mm?/ 0.079?inches | Height | 75?mm?/ 2.953?inches |
Depth | 26.4?mm?/ 1.039?inches | Note (material data) | Information on material specifications can be found here |
Color | light gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.092MJ | Weight | 3g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-33 |
eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?(25)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4017332199216 |
Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
