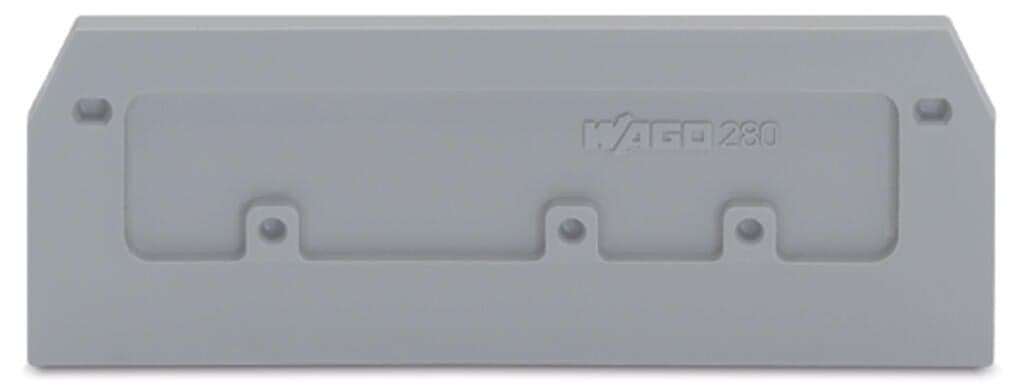

Product Model
280-374
Selling Points
- 1High-Quality Construction: Made from durable, 2.5 mm thick gray material.
- 2Versatile Compatibility: Designed for use with WAGO 280 Series rail mount terminal blocks.
- 3Enhanced Electrical Reliability: Ensures secure and reliable electrical connections.
- 4Compliant with Regulations: RoHS compliant and free from SVHC substances.
- 5Global Availability: Distributed worldwide, including shipping to over 240 countries.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 2.5?mm?/ 0.098?inches | Height | 69.4?mm?/ 2.732?inches |
Depth | 28.5?mm?/ 1.122?inches | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.133MJ | Weight | 3g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-33 |
eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?(25)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4017332255448 |
Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
