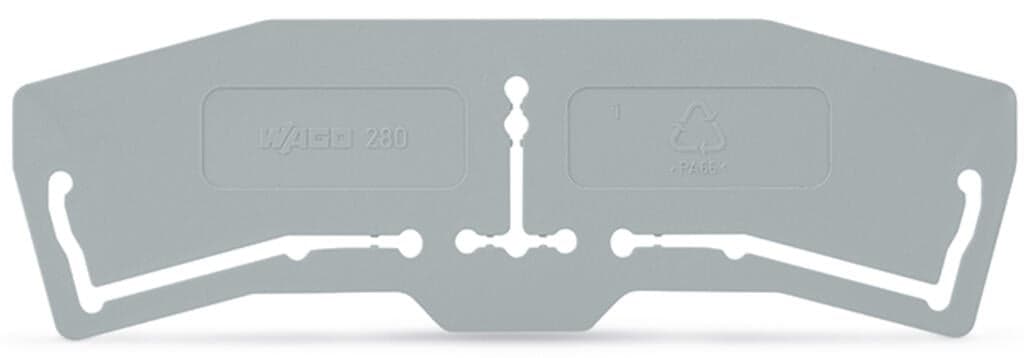

Product Model
280-394
Selling Points
- 1High-quality 3D CAD models available for free download.
- 2Ideal for rail-mounted terminal blocks in industrial applications.
- 31 mm thick separator plate with 3 mm oversized design.
- 4Insulated jumper included for secure connections.
- 5Compatible with WAGO's Series 280 terminal blocks.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 2?mm?/ 0.079?inches | Height | 99.2?mm?/ 3.906?inches |
Depth | 31.6?mm?/ 1.244?inches | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.09MJ | Weight | 2.8g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
eCl@ss 10.0 | 27-14-11-33 | eCl@ss 9.0 | 27-14-11-33 |
ETIM 9.0 | EC000886 | ETIM 8.0 | EC000886 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 100?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4055143031035 | Customs tariff number | 8538906000 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
