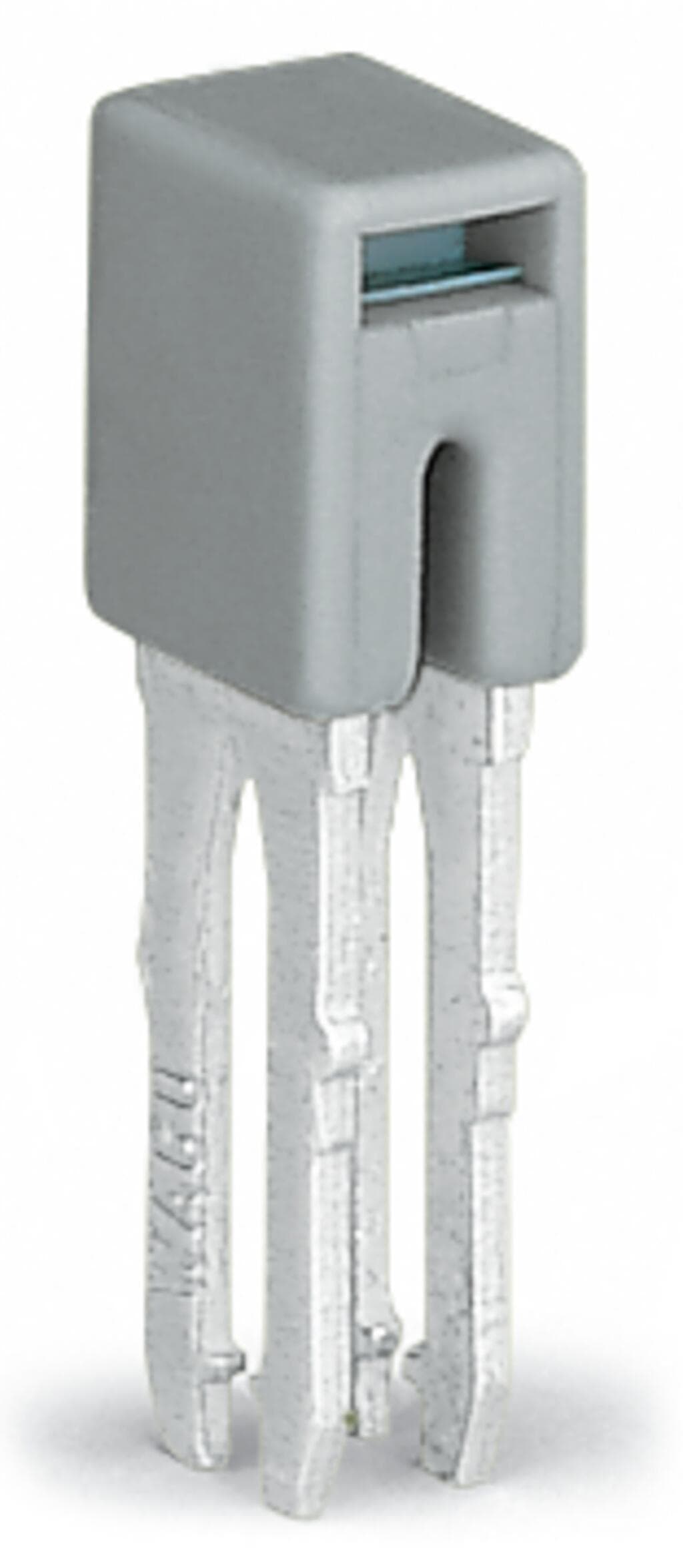

Product Model
280-402
Selling Points
- 1Insulated for safety and reliability.
- 2Suitable for rail-mounted terminal blocks.
- 3Nominal current rating of 24A.
- 4Gray housing color for easy identification.
- 5ROHS compliant for environmental safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 5?mm?/ 0.197?inches | Height | 8?mm?/ 0.315?inches |
Depth | 21.7 mm / 0.854 inches | Jumper assignment | 1-2 |
Note (material data) | Information on material specifications can be found here | Color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.008MJ |
Weight | 1.3g | Product Group | 1 (Rail Mounted Terminal Blocks) |
eCl@ss 10.0 | 27-14-11-40 | eCl@ss 9.0 | 27-14-11-40 |
ETIM 9.0 | EC000489 | ETIM 8.0 | EC000489 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 200?(25)?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4044918446624 | Customs tariff number | 8536698000 |
RoHS Compliance Status | Compliant,No Exemption | Rated current | 24A |
Specifications may be subject to change without notice
