Product Model

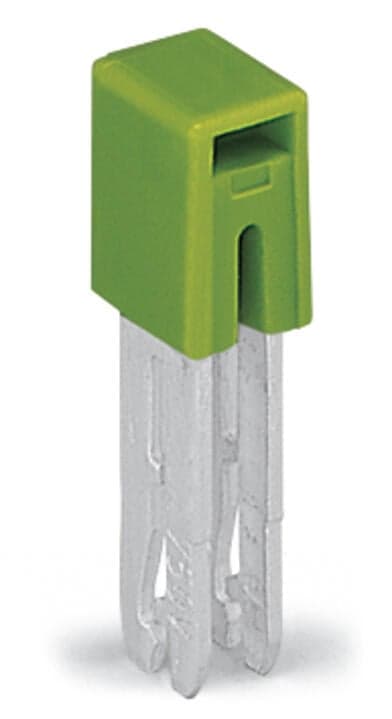

280-422
Selling Points
- 1High current rating of 24 A for efficient power distribution.
- 2Insulated adjacent jumper for safe and reliable connections.
- 3Durable yellow-green color for easy identification.
- 4Compact design with a depth of 8 mm for space-saving applications.
- 5RoHS compliant and SVHC-free for environmental sustainability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 5?mm?/ 0.197?inches | Height | 8?mm?/ 0.315?inches |
Depth | 21.7 mm / 0.854 inches | Jumper assignment | 1-2 |
Note (material data) | Information on material specifications can be found here | Color | yellow-green |
Fire load | 0.006MJ | Weight | 1.3g |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-40 |
eCl@ss 9.0 | 27-14-11-40 | ETIM 9.0 | EC000489 |
ETIM 8.0 | EC000489 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 200?(25)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4044918253819 |
Customs tariff number | 8536698000 | RoHS Compliance Status | Compliant,No Exemption |
Rated current | 24A |
Specifications may be subject to change without notice
