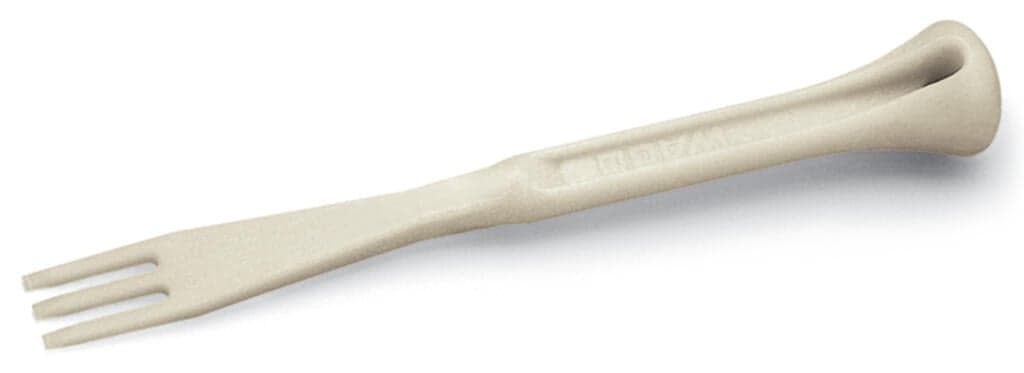

Product Model
280-433
Selling Points
- 1Fully insulated to ensure safe handling of live electrical components.
- 2Designed for efficient 3-way operations with male and female connectors.
- 3Meets specifications with a 0.289 MJ fire load for reliable performance.
- 4Suitable for use with male and female connectors featuring CAGE CLAMP connection.
- 5Dimensions of 5.91 inches in diameter for easy handling and storage.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Number of spacings | 3-way | Depth | 150?mm?/ 5.91?inches |
Pin spacing | 5/5.08?mm | Suitable | for male and female connectors with CAGE CLAMP?connection |
Color | white | Material group | I |
Insulation material (main housing) | Glass fiber-reinforced polyamide (PA66 GF) | Flammability class per UL94 | HB |
Fire load | 0.289MJ | Weight | 9.6g |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-92 |
eCl@ss 9.0 | 27-14-11-92 | ETIM 9.0 | EC002848 |
ETIM 8.0 | EC002848 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?(1)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4017332270625 |
Customs tariff number | 8205595560 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
