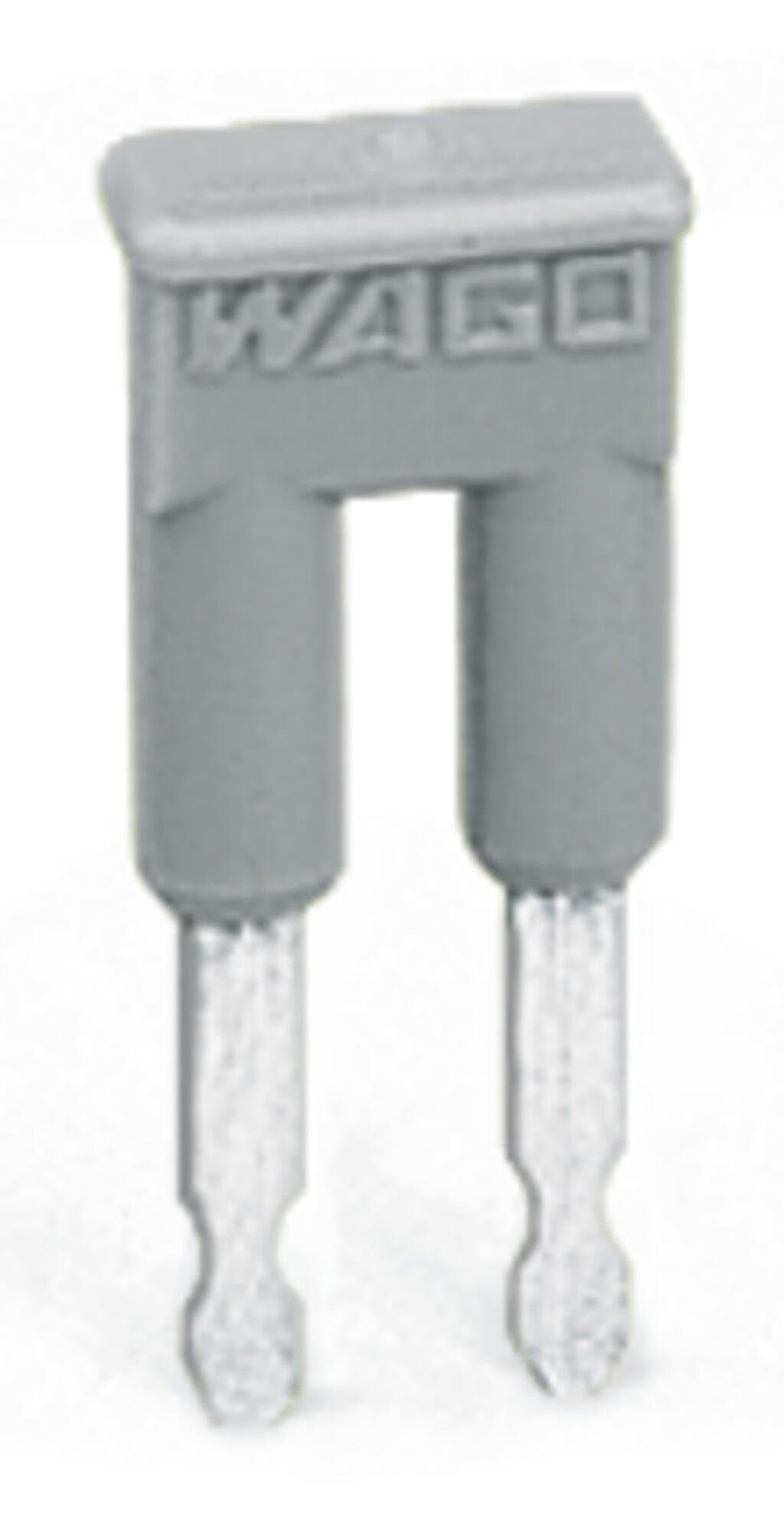

Product Model
280-482
Selling Points
- 1Insulated for safety and reliability.
- 2Compact dimensions: 0.394 in W x 0.157 in D.
- 3Gray housing color for easy identification.
- 42-way jumper bar for versatile connectivity.
- 5Durable construction with a fire load of 0.006 MJ.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 10?mm?/ 0.394?inches | Height | 4?mm?/ 0.157?inches |
Depth | 19.2 mm / 0.756 inches | Jumper assignment | 1-2 |
Note (material data) | Information on material specifications can be found here | Color | gray |
Insulation material (main housing) | Polyamide (PA66) | Fire load | 0.006MJ |
Weight | 1.1g | eCl@ss 10.0 | 27-14-11-40 |
eCl@ss 9.0 | 27-14-11-40 | ETIM 9.0 | EC000489 |
ETIM 8.0 | EC000489 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 200?(25)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4044918683845 |
Customs tariff number | 8536698000 | RoHS Compliance Status | Compliant,No Exemption |
Rated current | 24A |
Specifications may be subject to change without notice
